Parts diagrams
Yamaha RZ250R · 1986
1XG0-010-B-1986 · JAPAN · ﾌｱﾗｳｴｲ ﾌﾞﾙ- · Catalog 161XG010J1
Page 01 · 43 parts

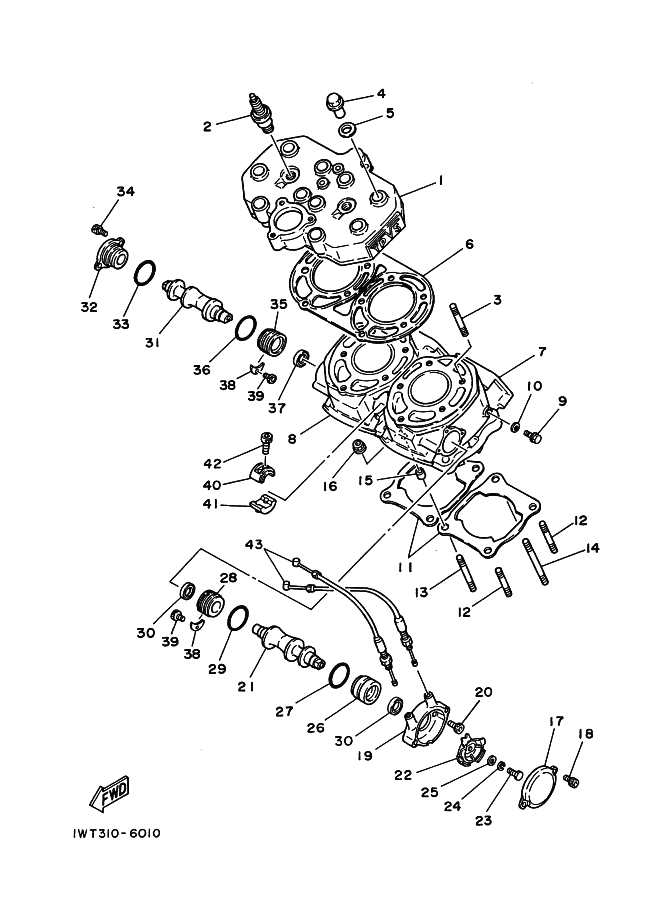

Cylinder
Explore parts
Page 02 · 18 parts

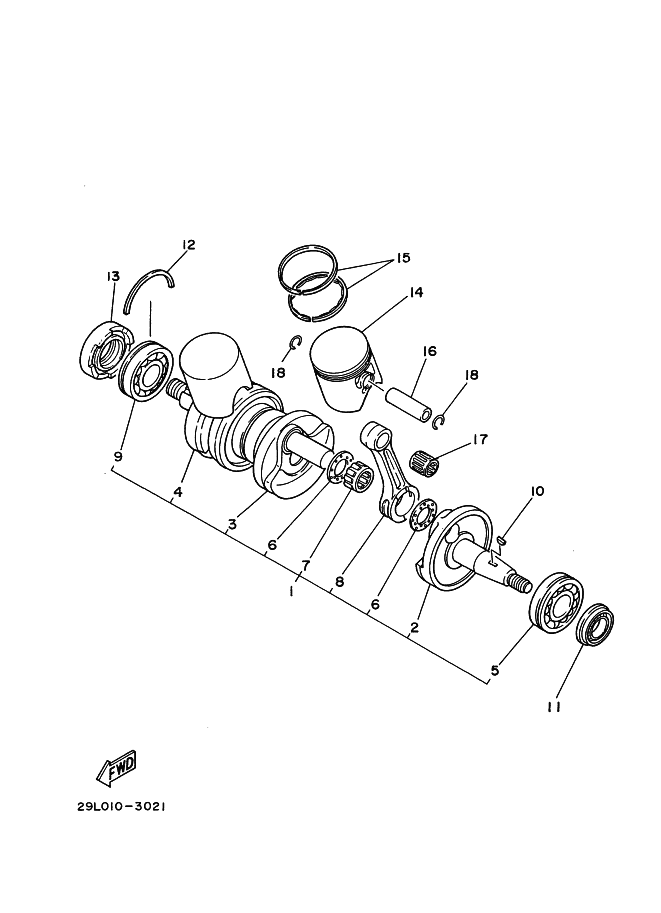

Crankshaft . Piston
Explore parts
Page 03 · 11 parts

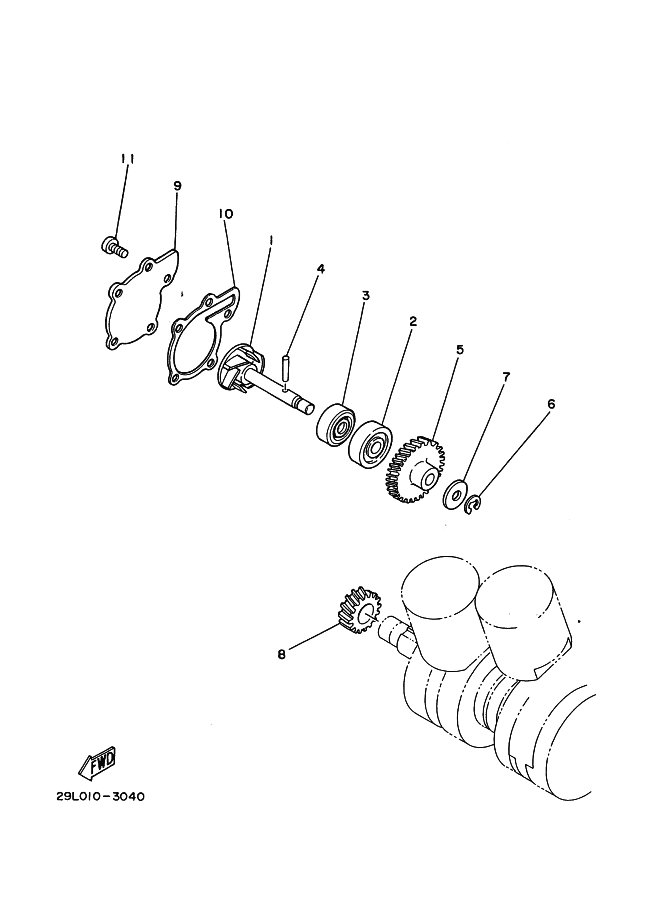

Water Pump
Explore parts
Page 04 · 38 parts

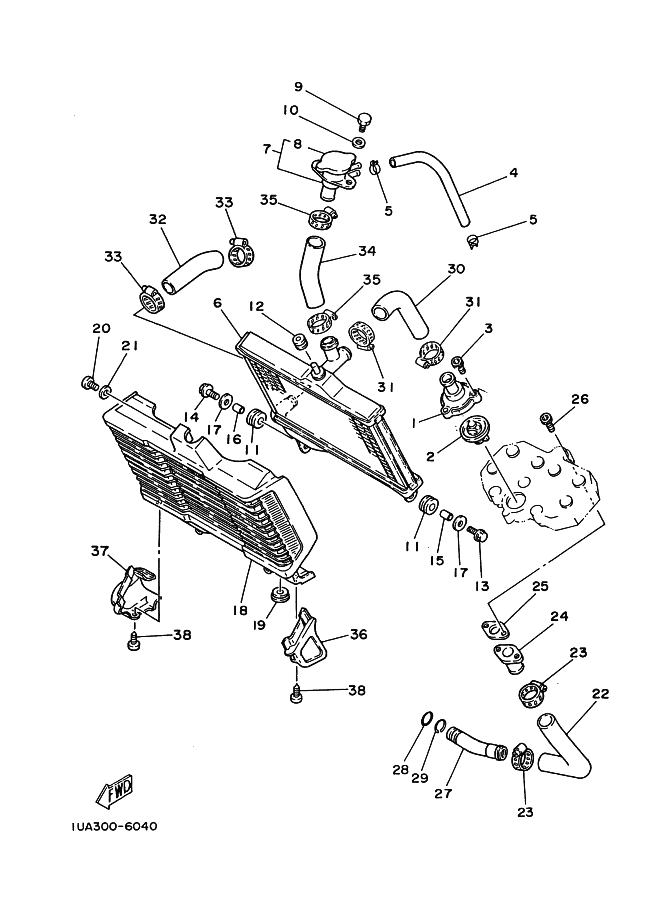

Radiator . Hose
Explore parts
Page 05 · 31 parts

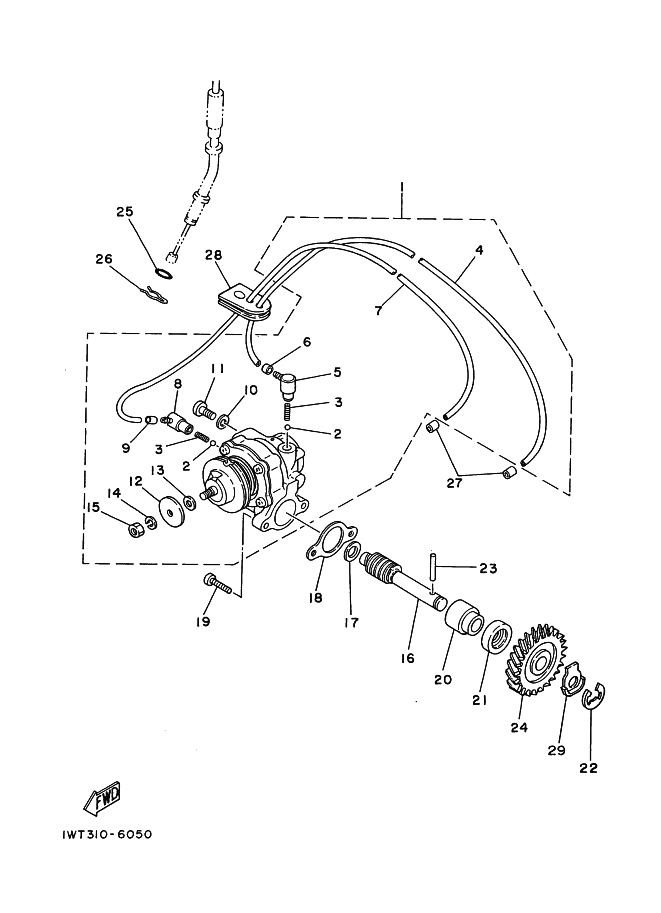

Oil Pump
Explore parts

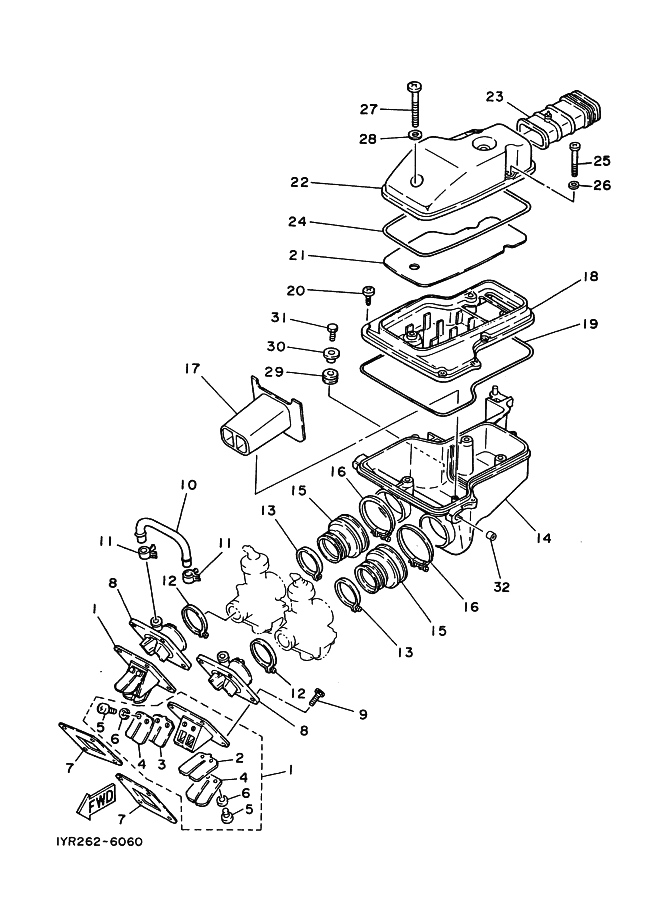

Page 06 · 32 parts
Intake
Explore parts
Page 07 · 49 parts

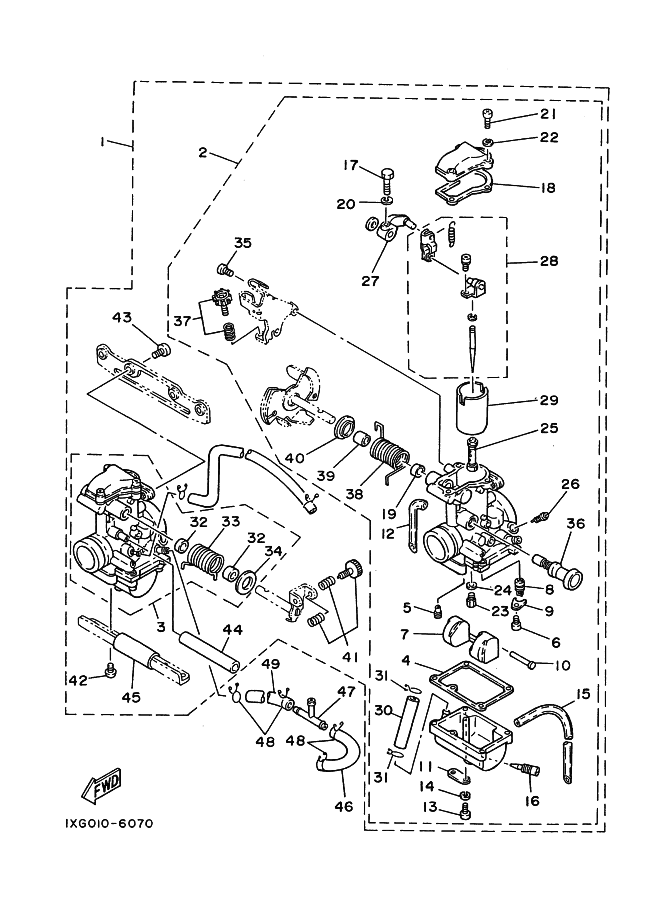

Carburetor
Explore parts
Page 08 · 22 parts

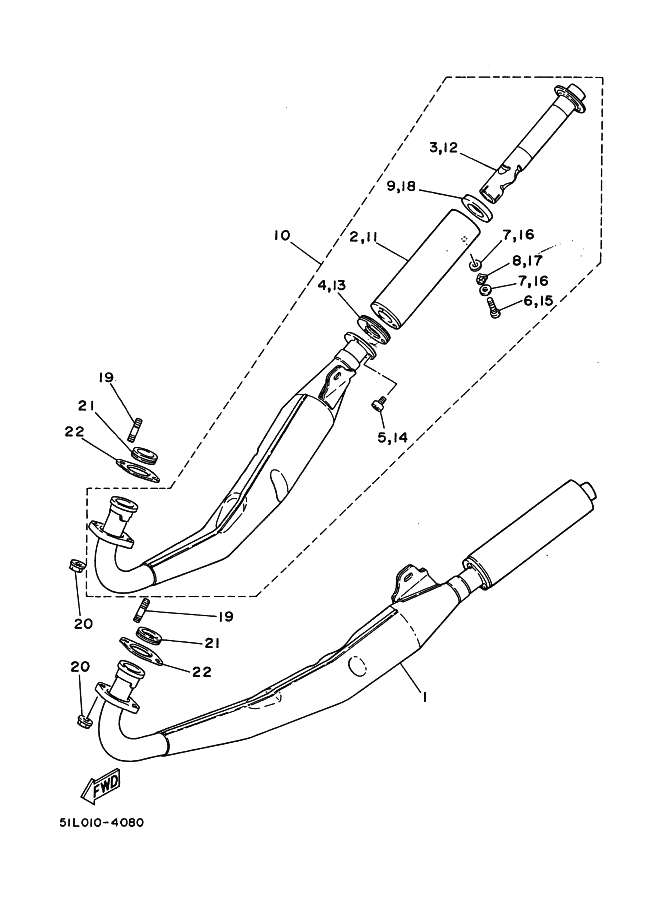

Exhaust
Explore parts
Page 09 · 24 parts

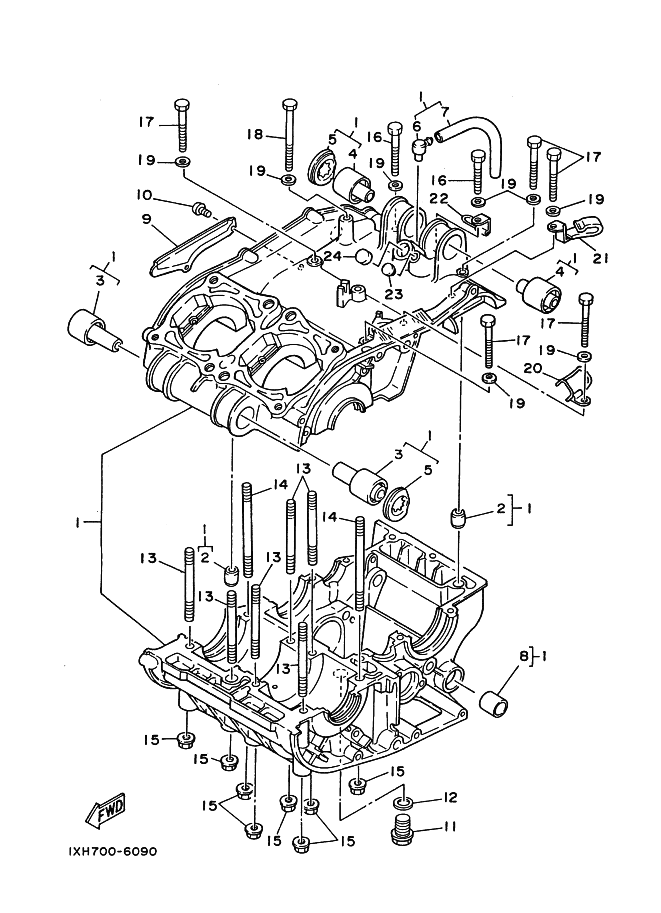

Crankcase
Explore parts
Page 10 · 20 parts

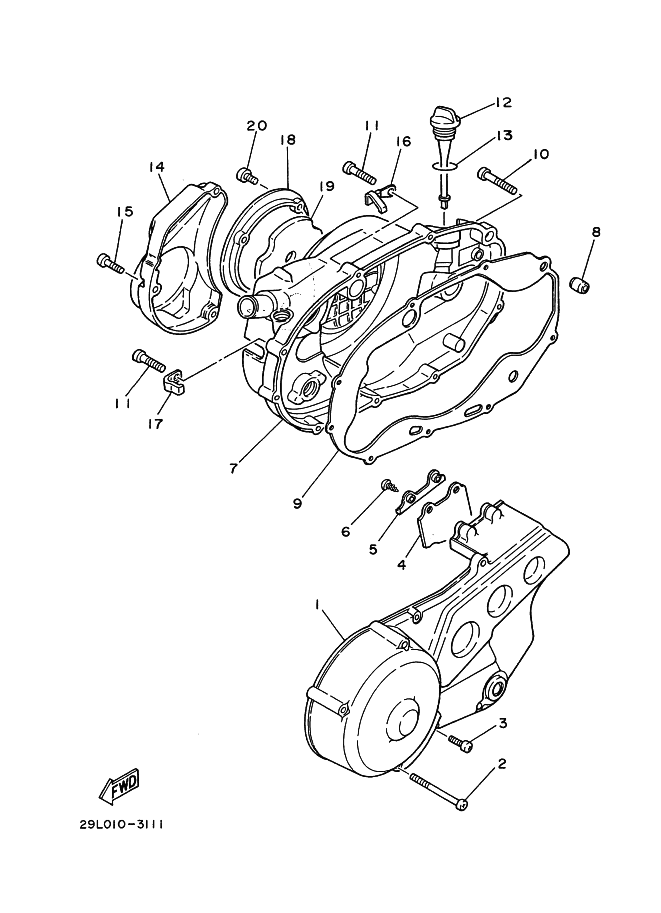

Crankcase Cover 1
Explore parts
Page 11 · 14 parts

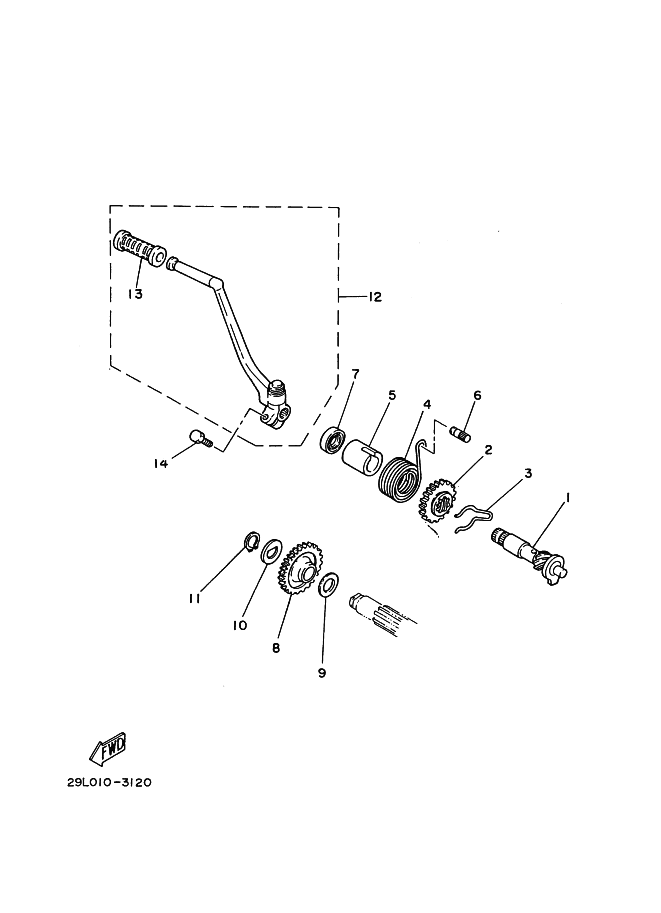

Starter
Explore parts
Page 12 · 30 parts

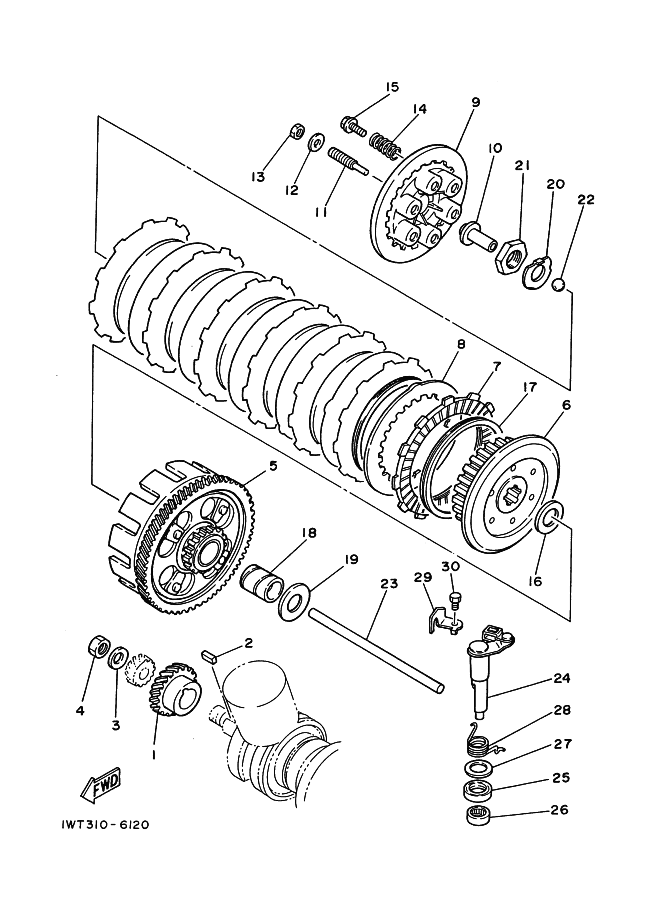

Clutch
Explore parts
Page 13 · 36 parts

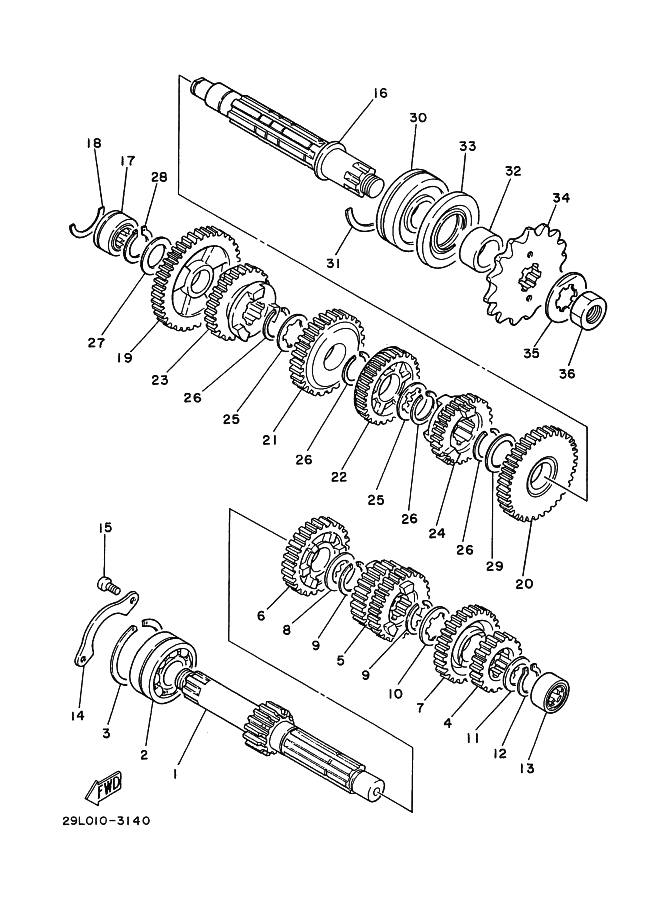

Transmission
Explore parts
Page 14 · 23 parts

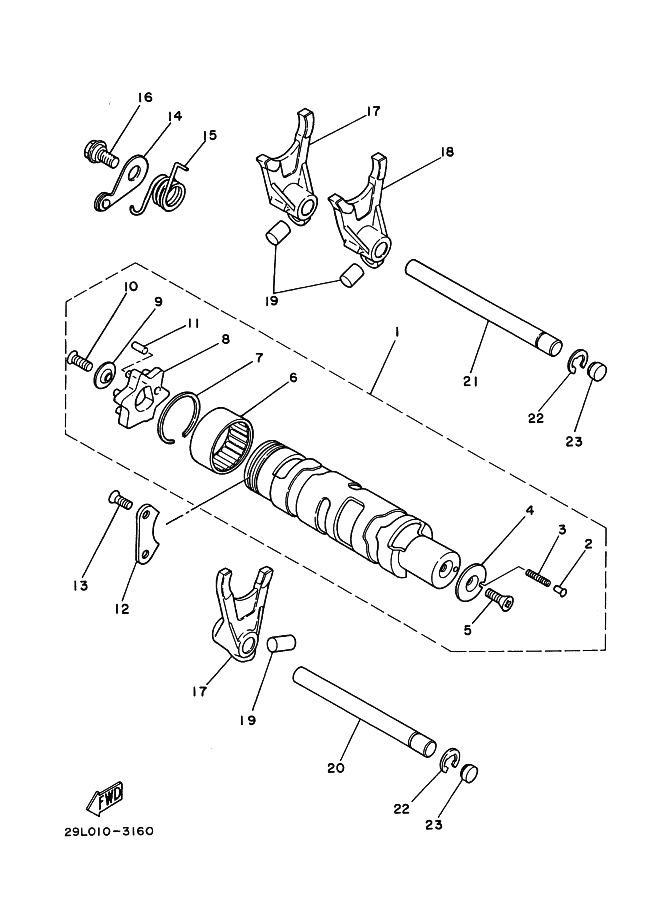

Shift Cam . Fork
Explore parts
Page 15 · 20 parts

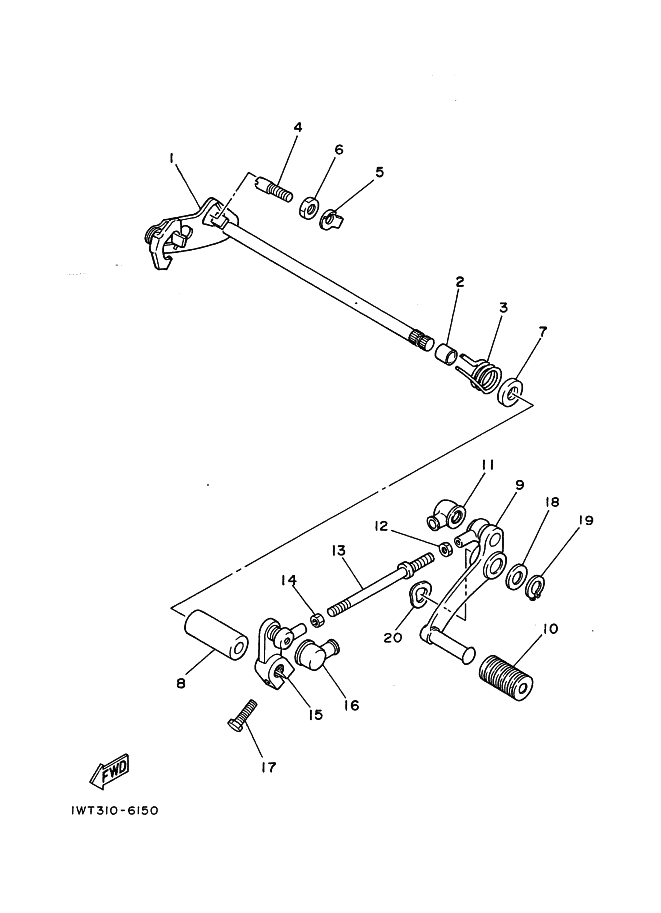

Shift Shaft
Explore parts

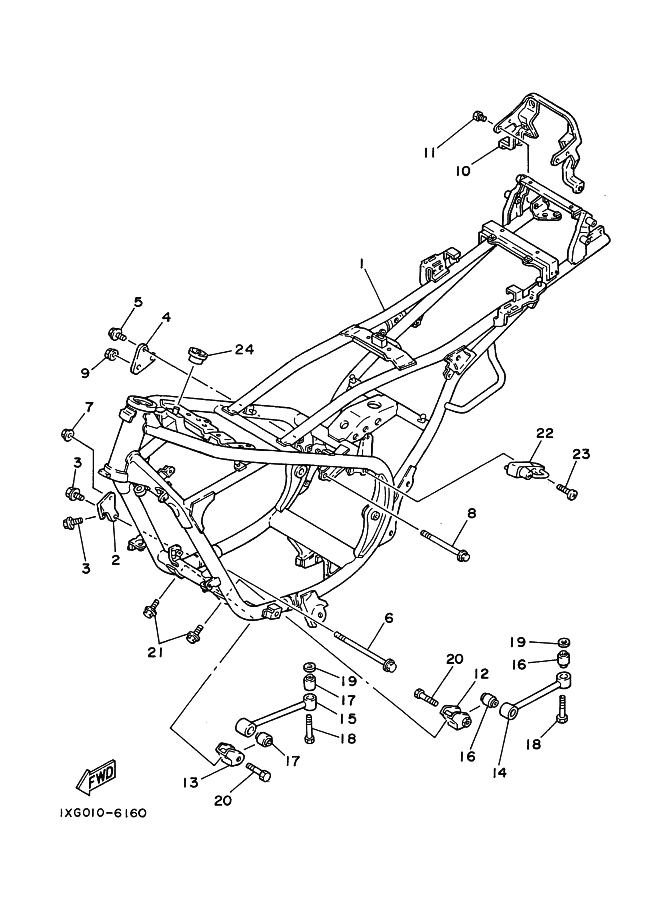

Page 16 · 24 parts
Frame
Explore parts
Page 17 · 13 parts

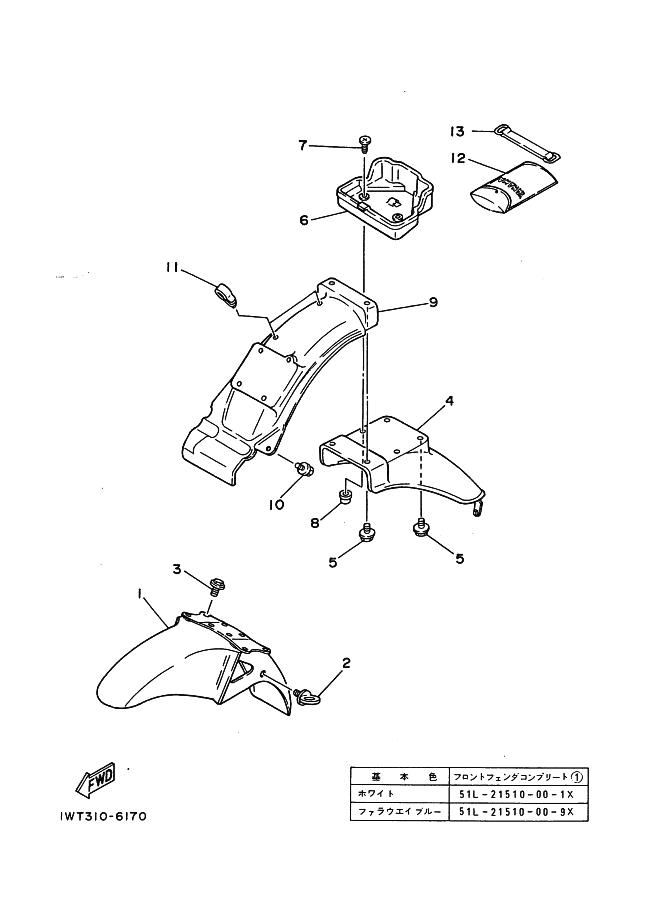

Fender
Explore parts
Page 18 · 23 parts

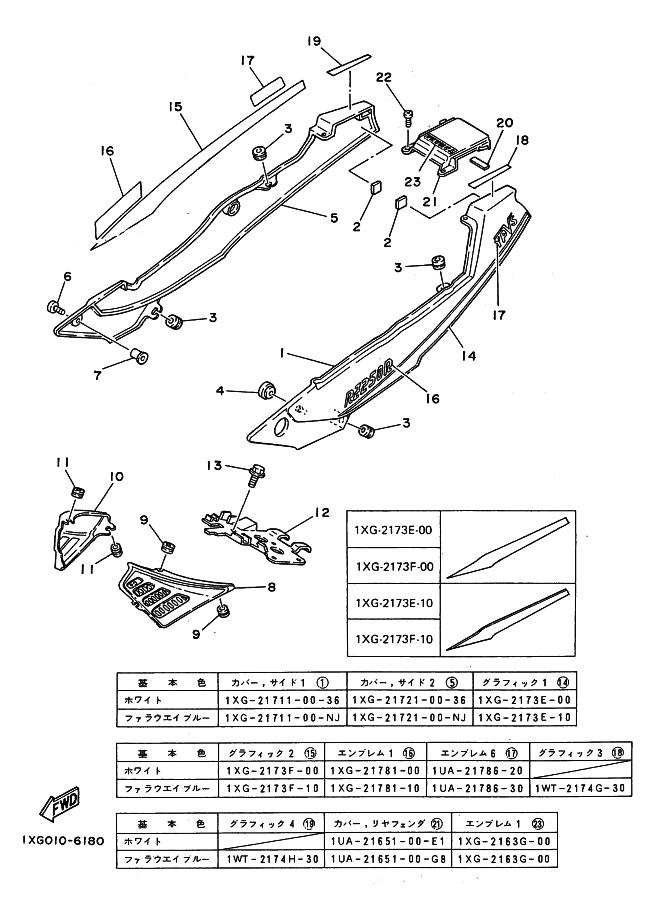

Sidecar Bar
Explore parts

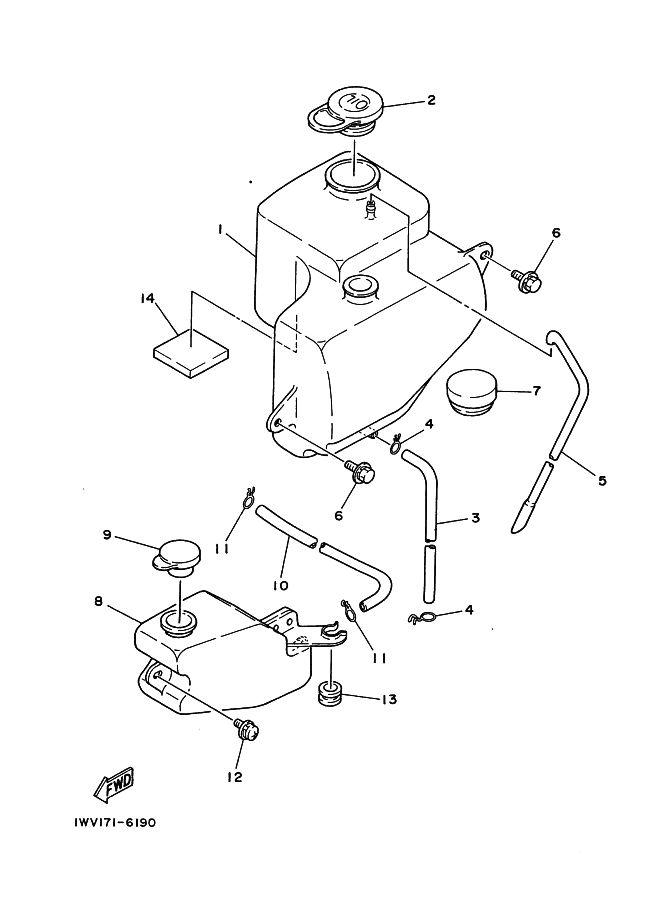

Page 19 · 14 parts
Oil Tank
Explore parts

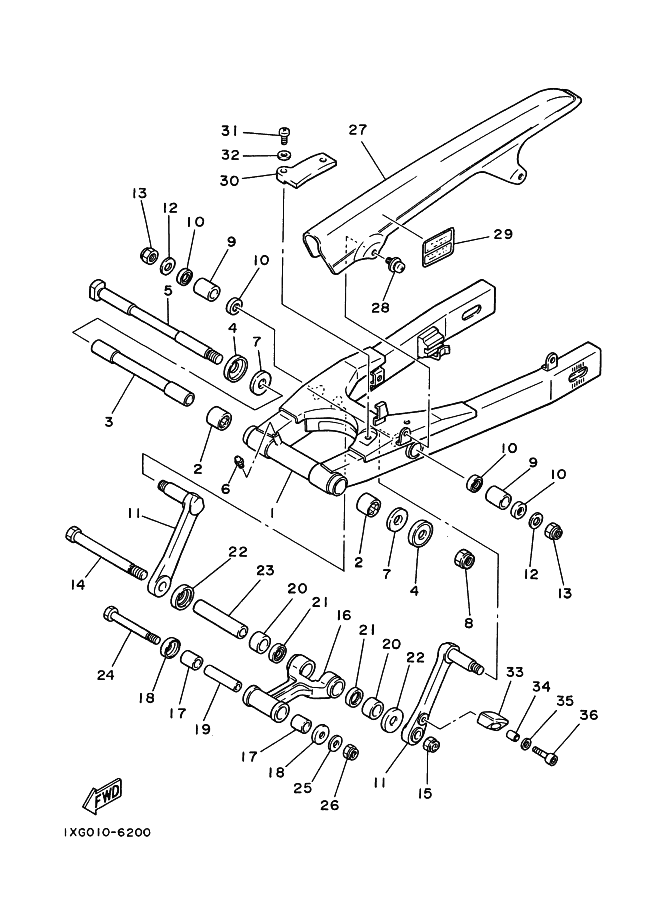

Page 20 · 36 parts
Rear Arm
Explore parts
Page 21 · 9 parts

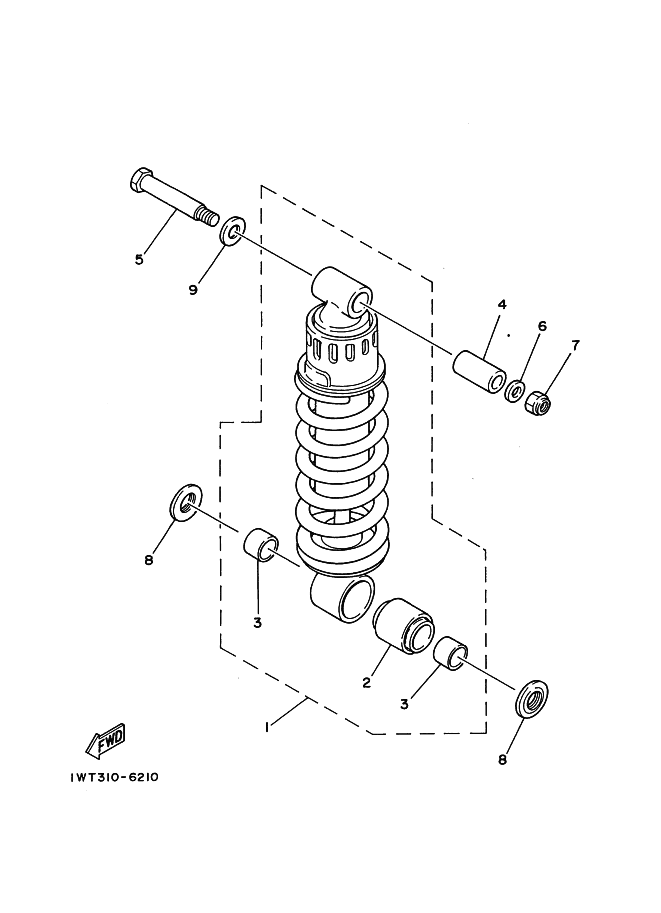

Rear Suspension
Explore parts
Page 22 · 15 parts

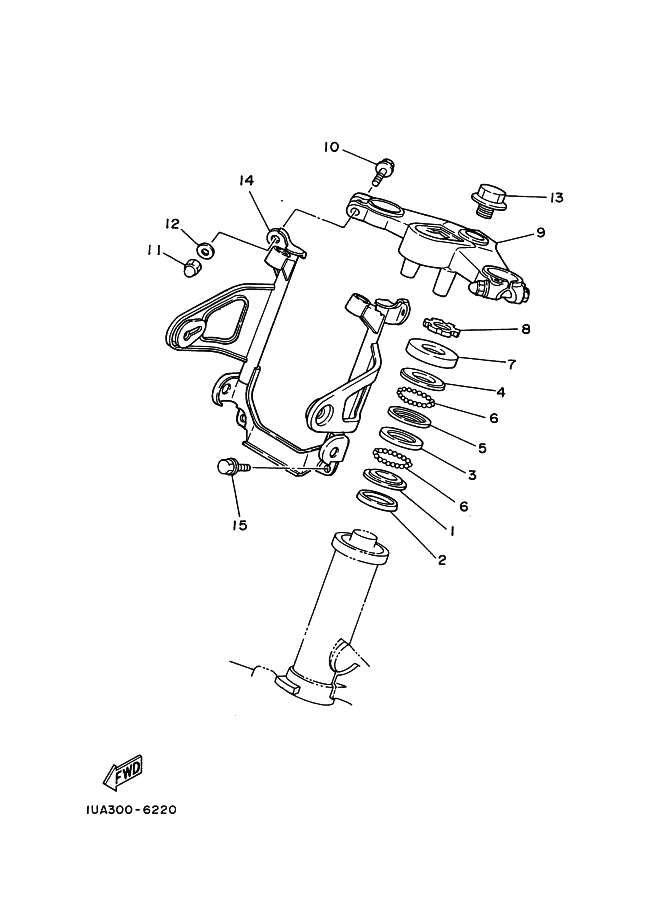

Steering
Explore parts
Page 23 · 48 parts

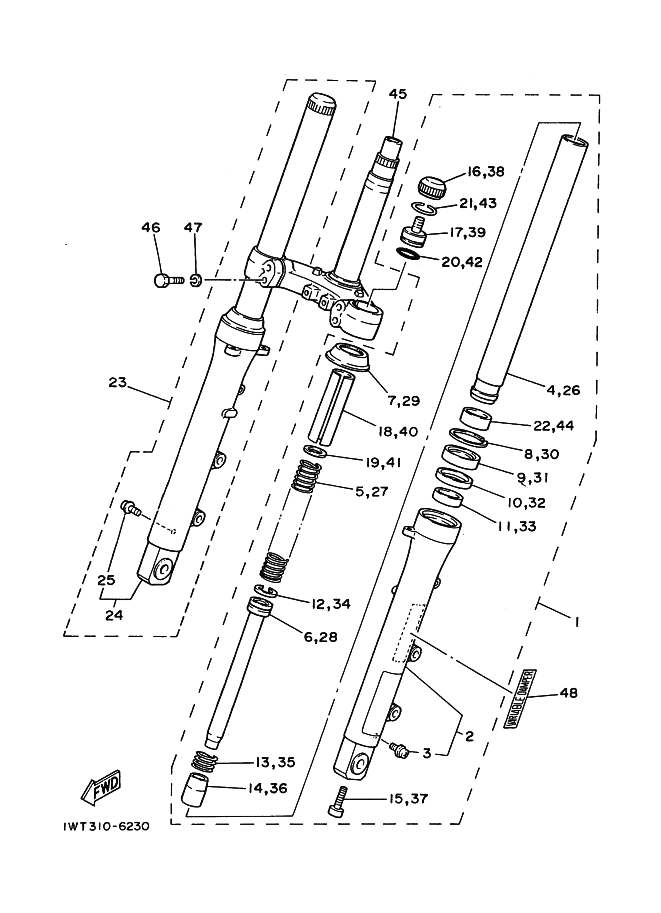

Front Fork
Explore parts

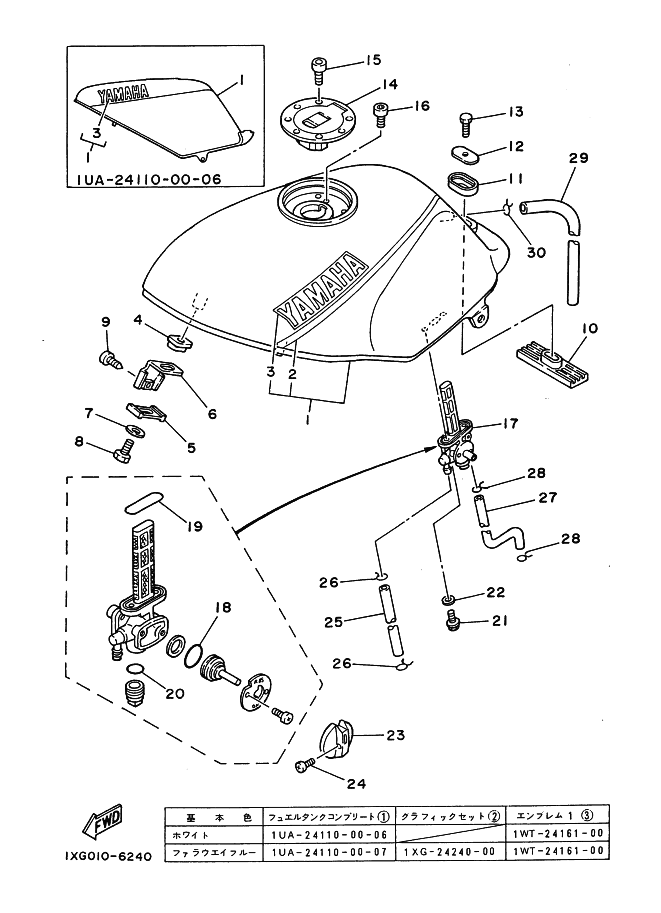

Page 24 · 30 parts
Fuel Tank
Explore parts
Page 25 · 8 parts

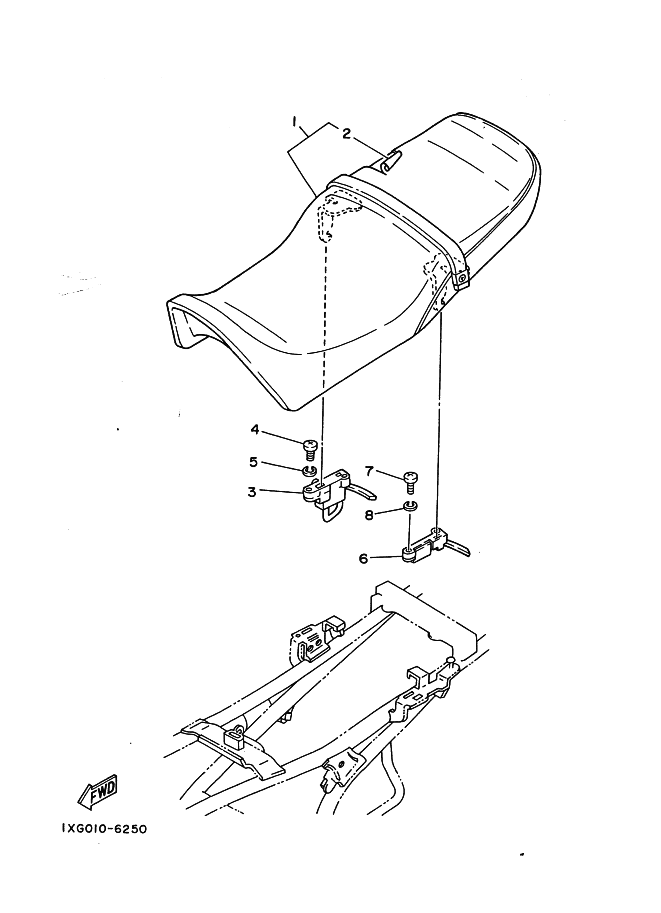

Seat
Explore parts
Page 26 · 21 parts

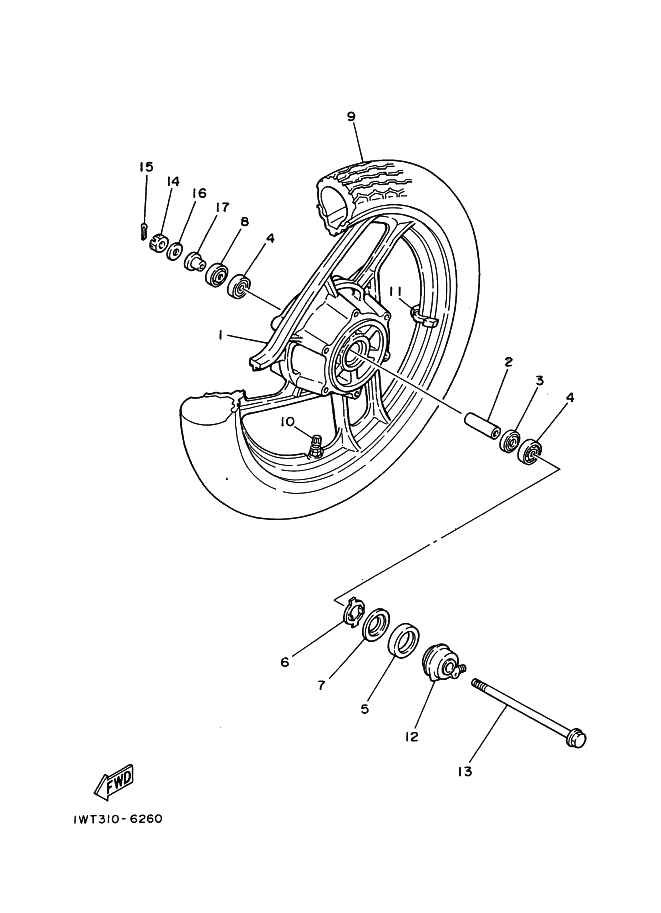

Front Wheel
Explore parts
Page 27 · 22 parts

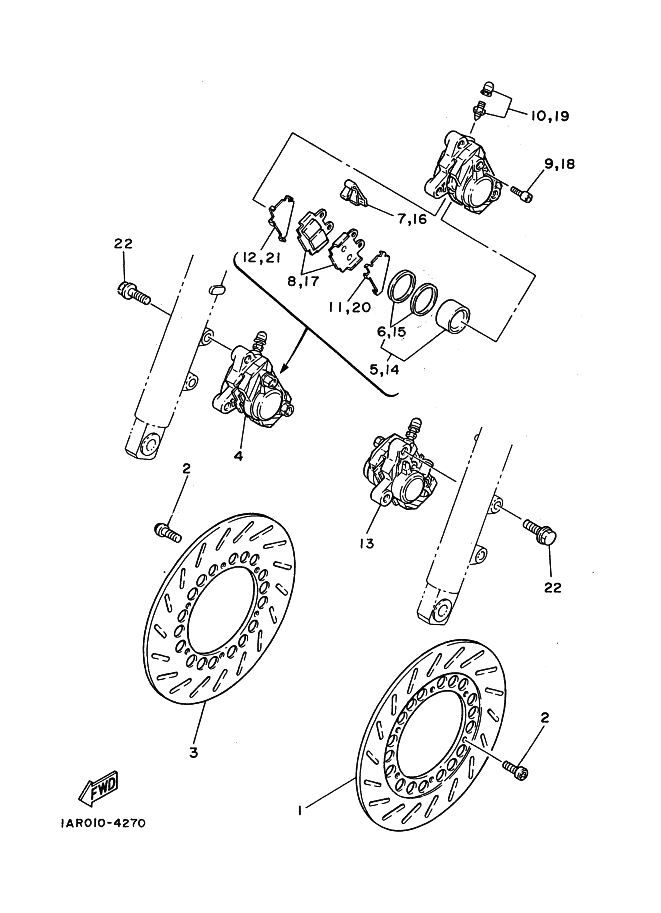

Front Brake Caliper
Explore parts
Page 28 · 32 parts

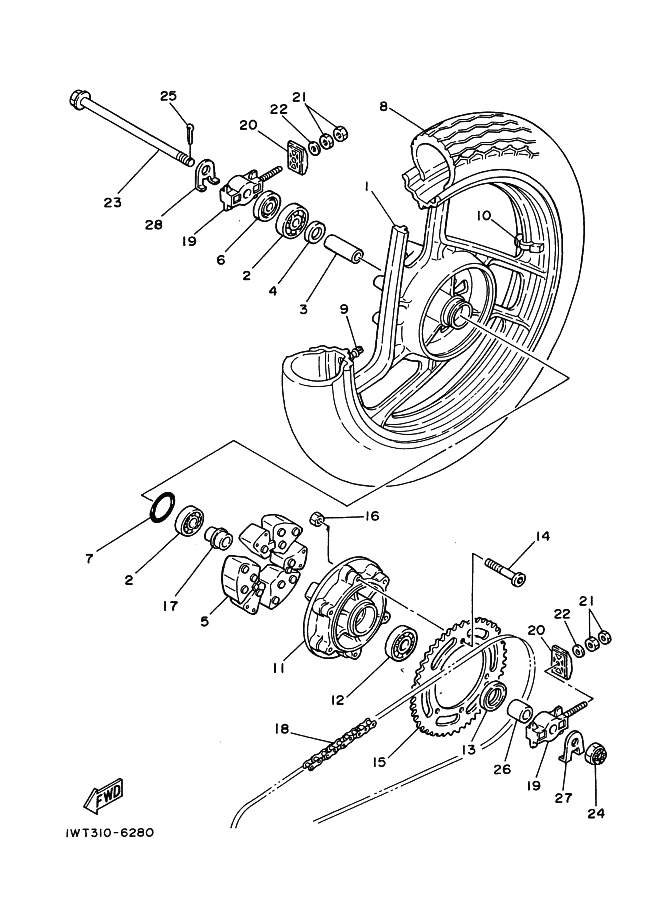

Rear Wheel
Explore parts
Page 29 · 12 parts

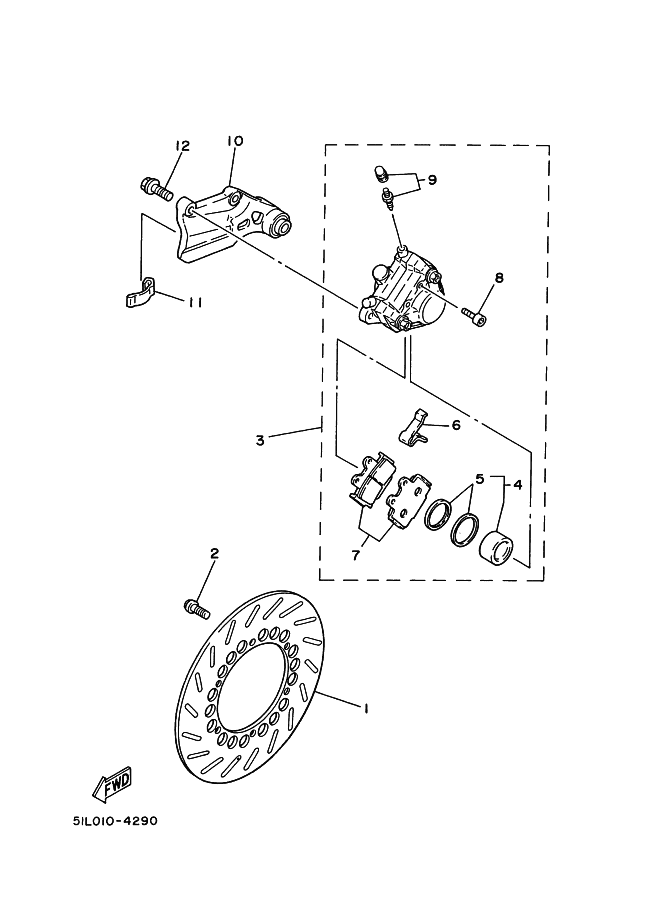

Rear Brake Caliper
Explore parts

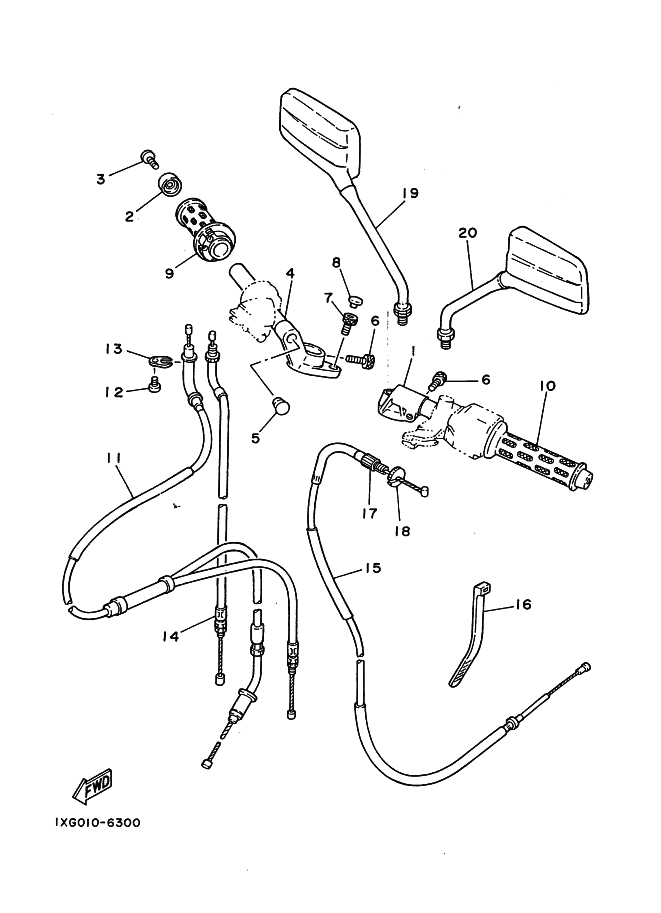

Page 30 · 20 parts
Steering Handle . Cable
Explore parts
Page 31 · 19 parts

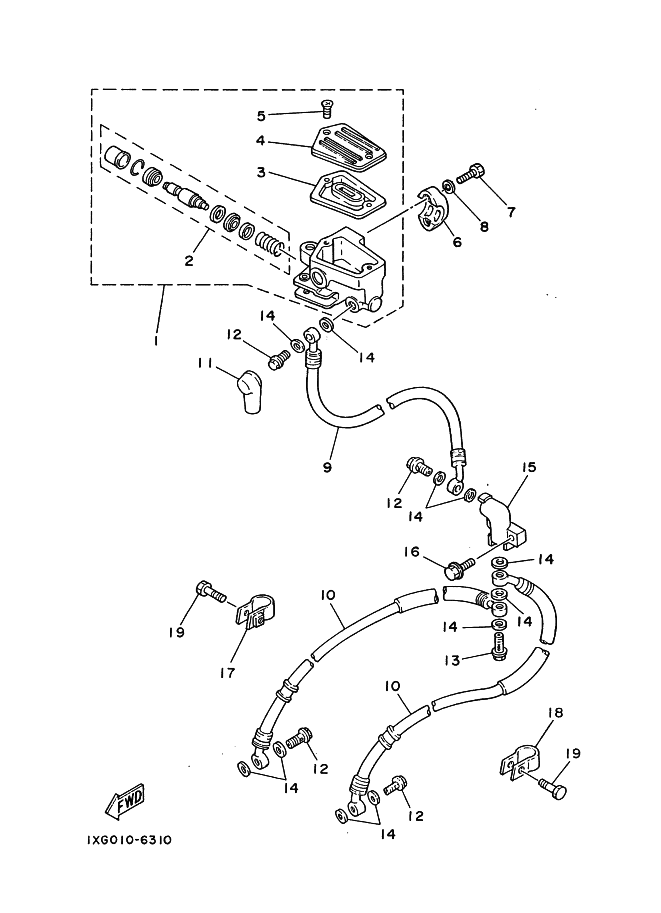

Front Master Cylinder
Explore parts
Page 32 · 48 parts

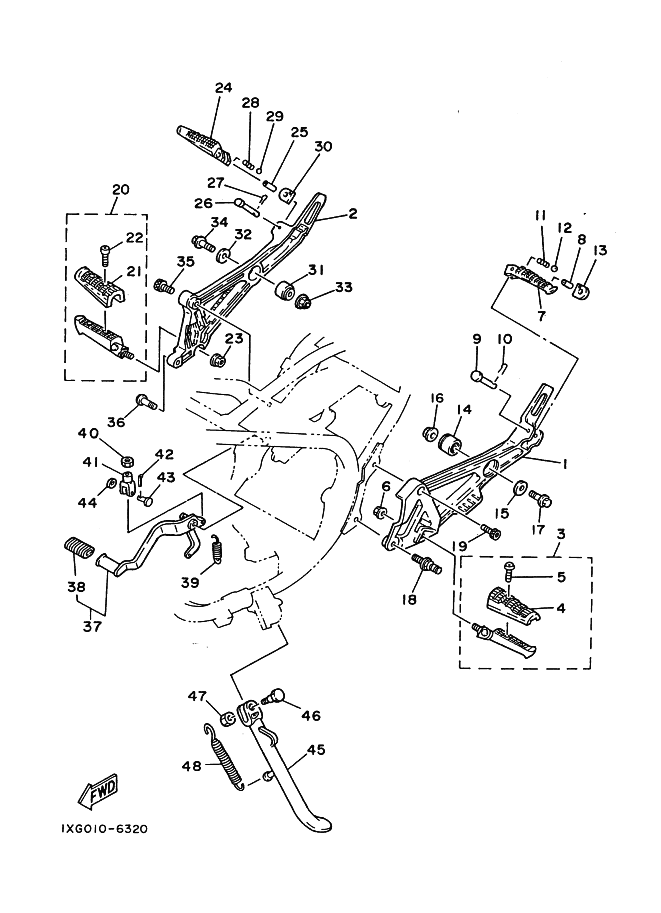

Stand . Footrest
Explore parts
Page 33 · 20 parts

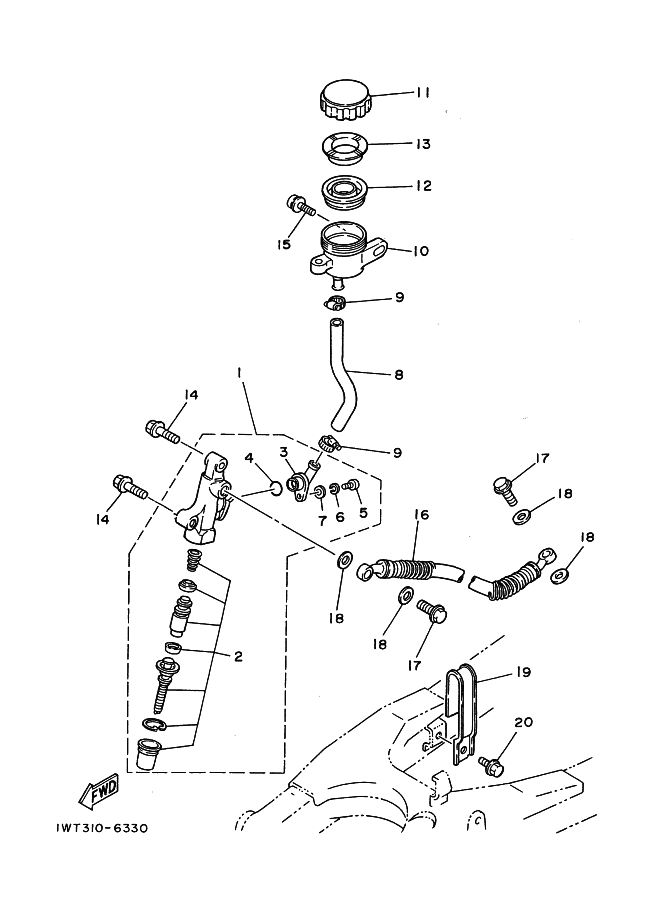

Rear Master Cylinder
Explore parts

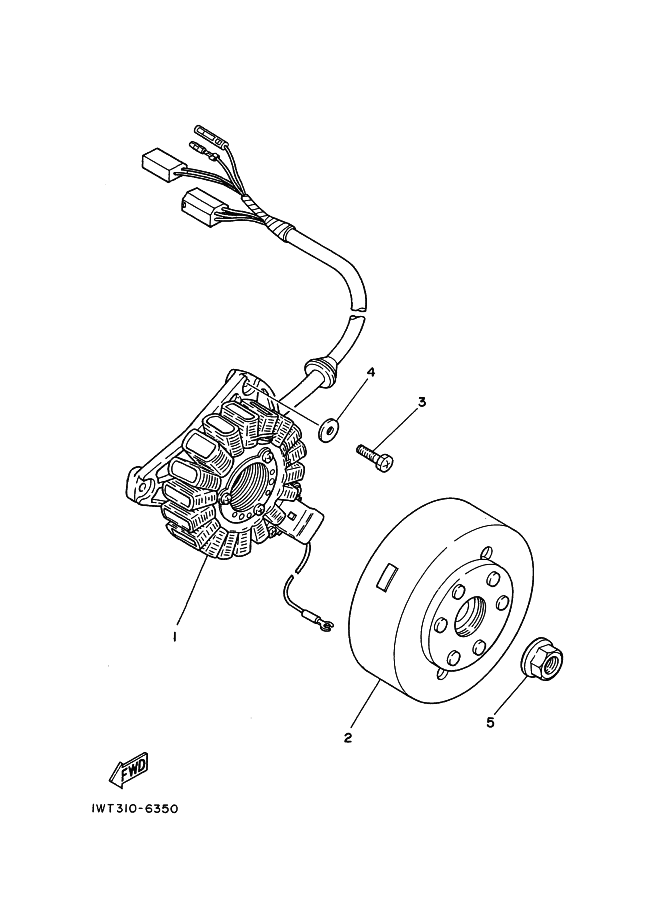

Page 34 · 5 parts
Generator
Explore parts
Page 35 · 10 parts

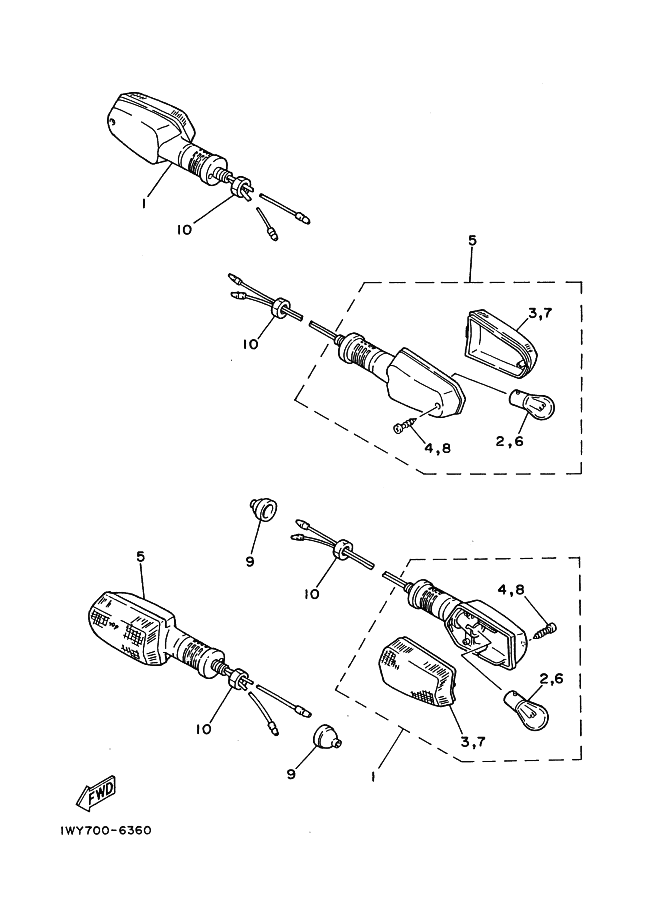

Flashlight
Explore parts
Page 36 · 27 parts

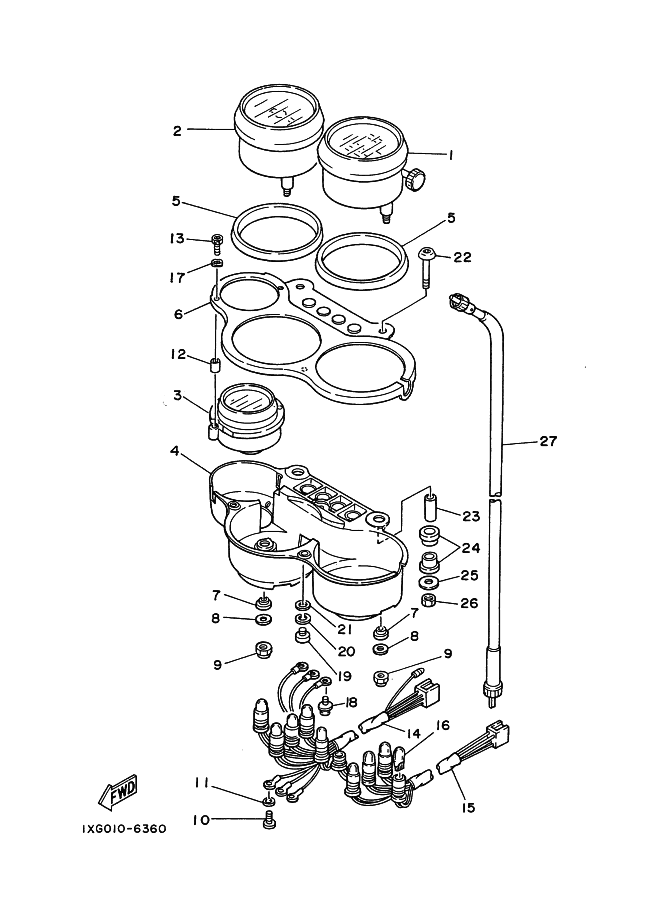

Meter
Explore parts

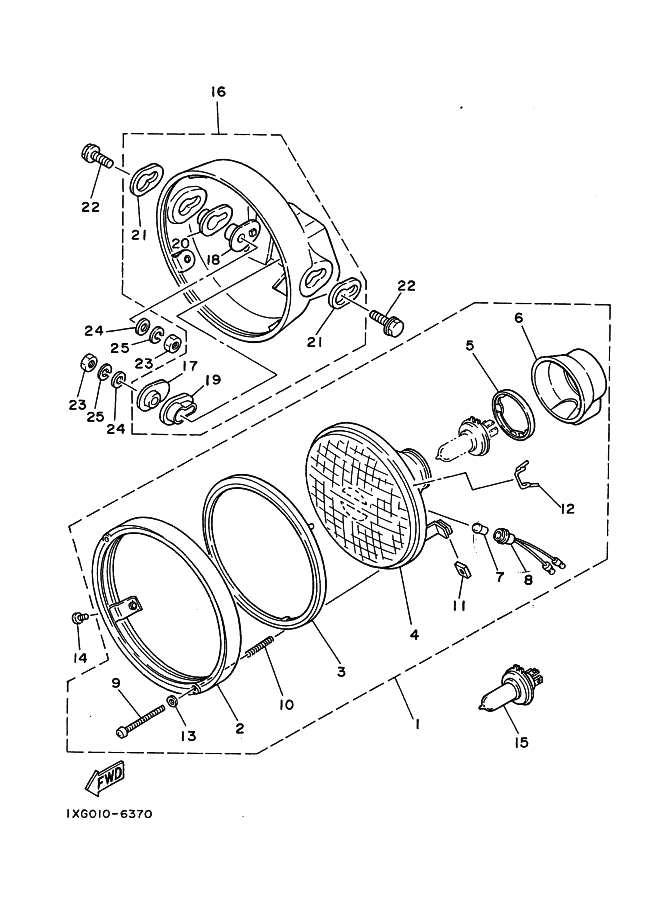

Page 37 · 25 parts
Headlight
Explore parts
Page 38 · 17 parts

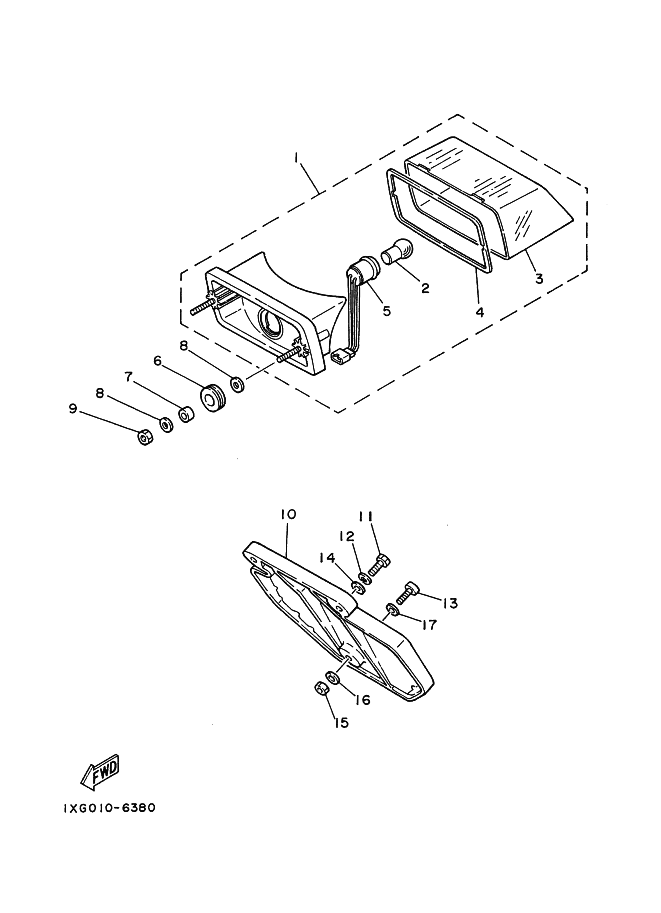

Taillight
Explore parts
Page 39 · 22 parts

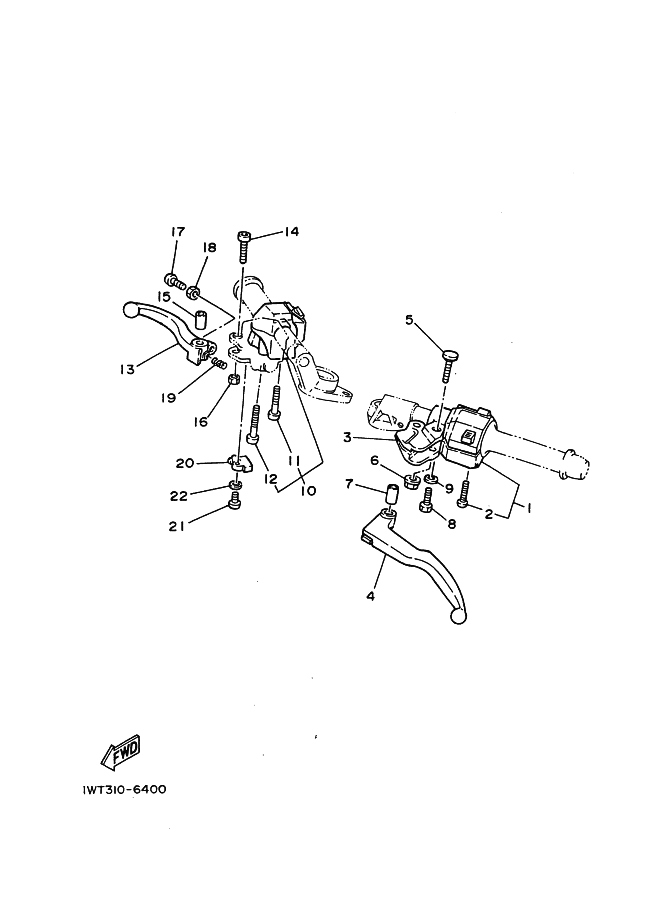

Handle Switch . Lever
Explore parts
Page 40 · 25 parts

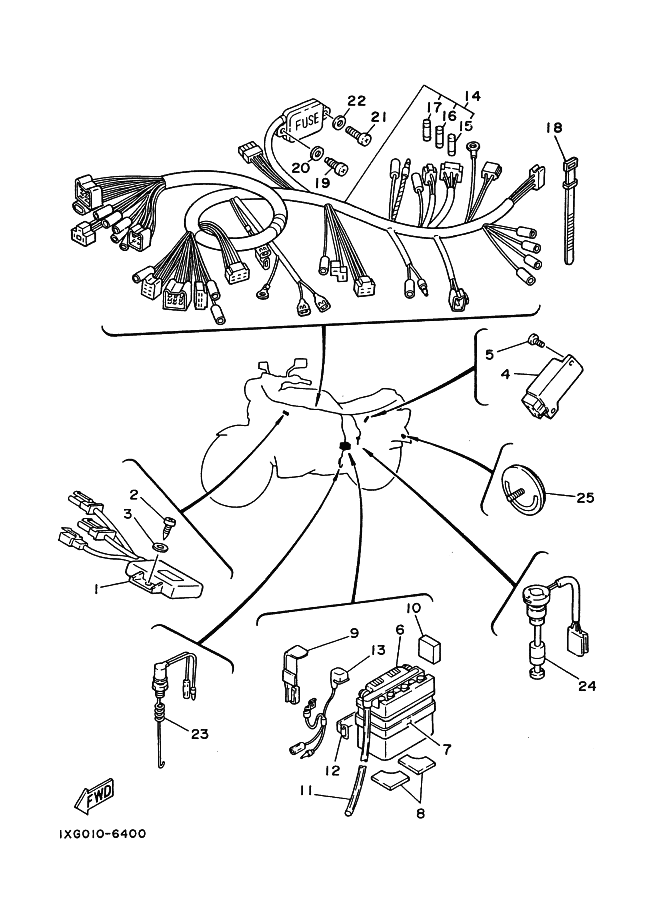

Electrical 1
Explore parts

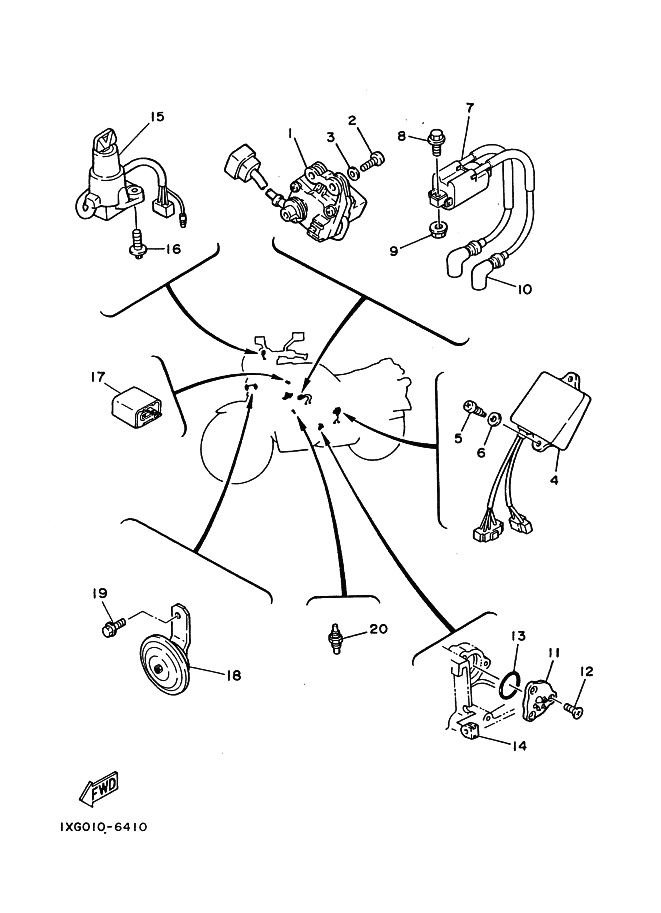

Page 41 · 21 parts
