Parts diagrams
Yamaha XVS950CU · 2014
2CY1-010-B-2014 · JAPAN · ﾌﾞﾙ-ｲﾂｼﾕ ﾎﾜｲﾄ ｶｸﾃﾙ 1 · Catalog 1N2CY010J1
Page 01 · 46 parts

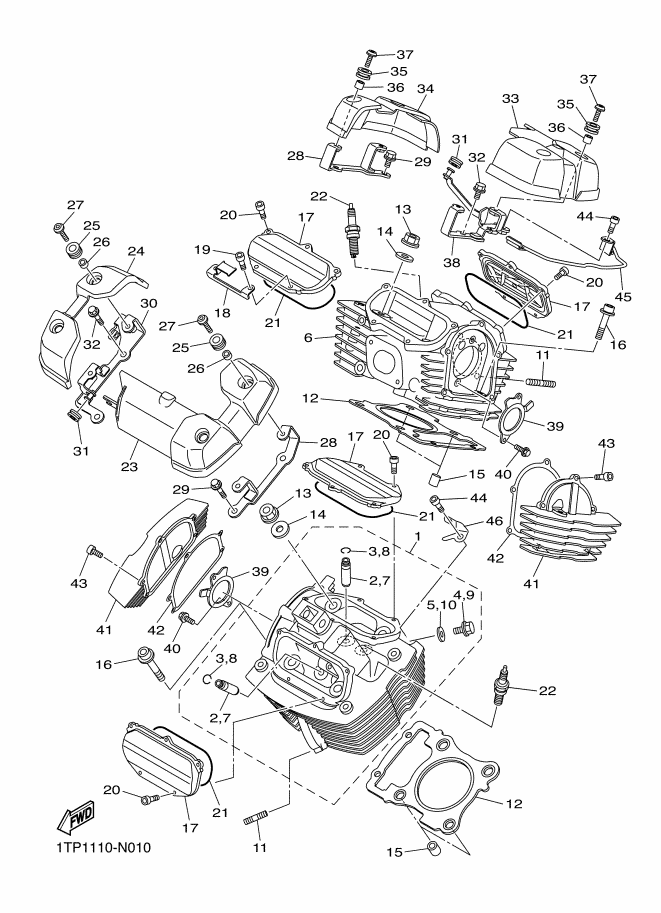

Cylinder Head
Explore parts
Page 02 · 11 parts

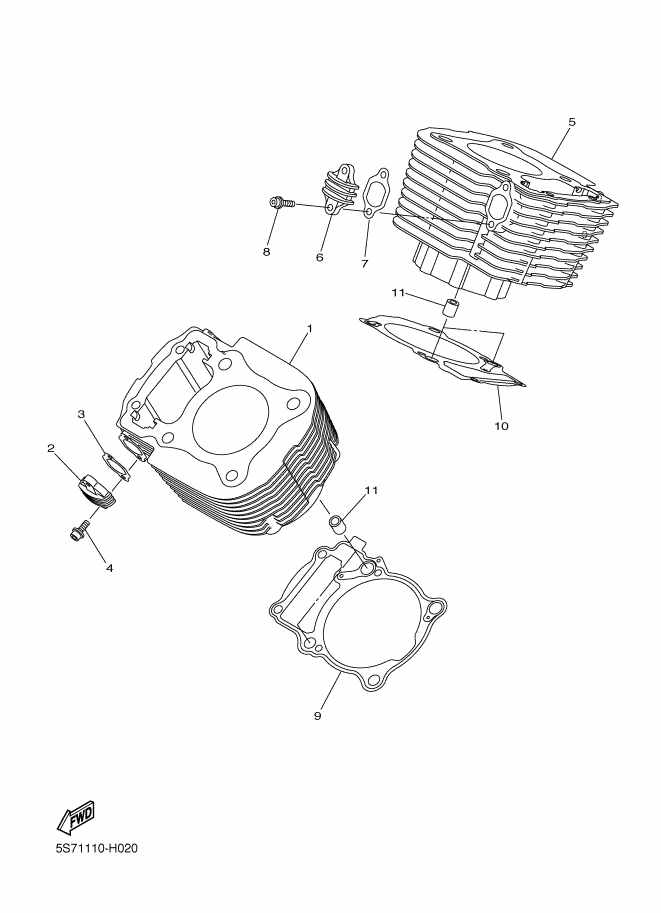

Cylinder
Explore parts
Page 03 · 10 parts

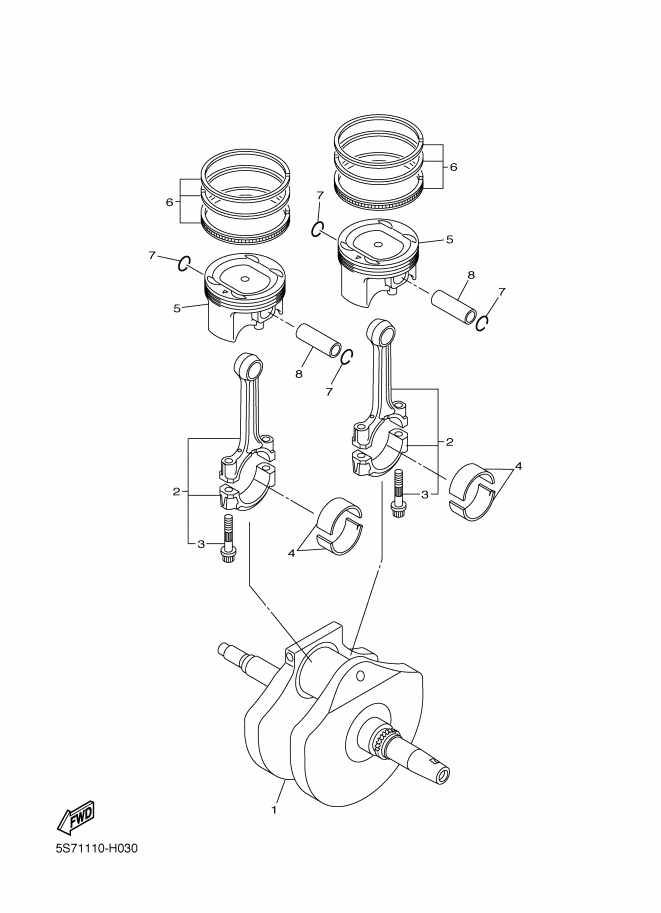

Crankshaft & Piston
Explore parts
Page 04 · 13 parts

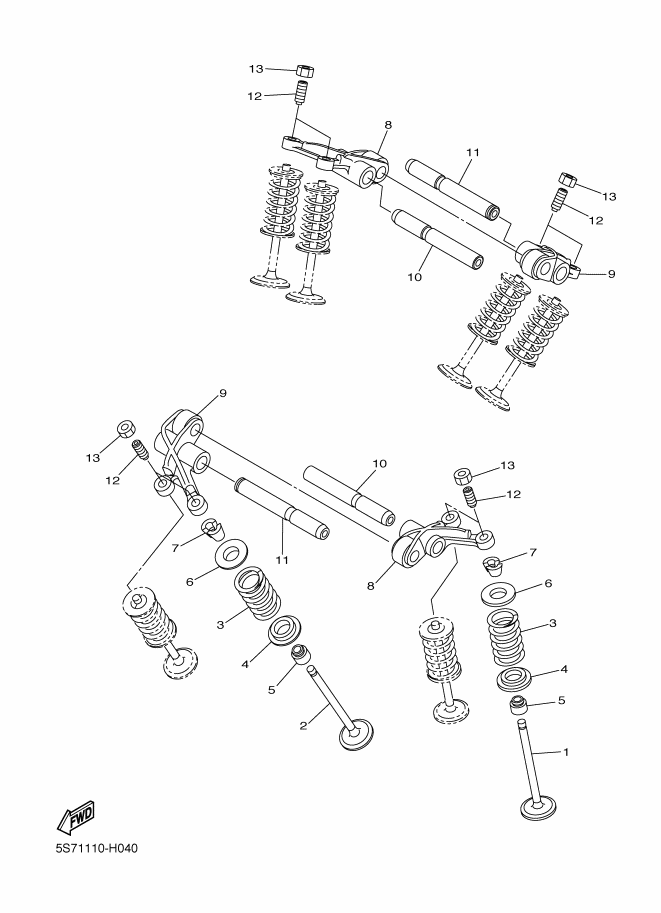

Valve
Explore parts
Page 05 · 15 parts

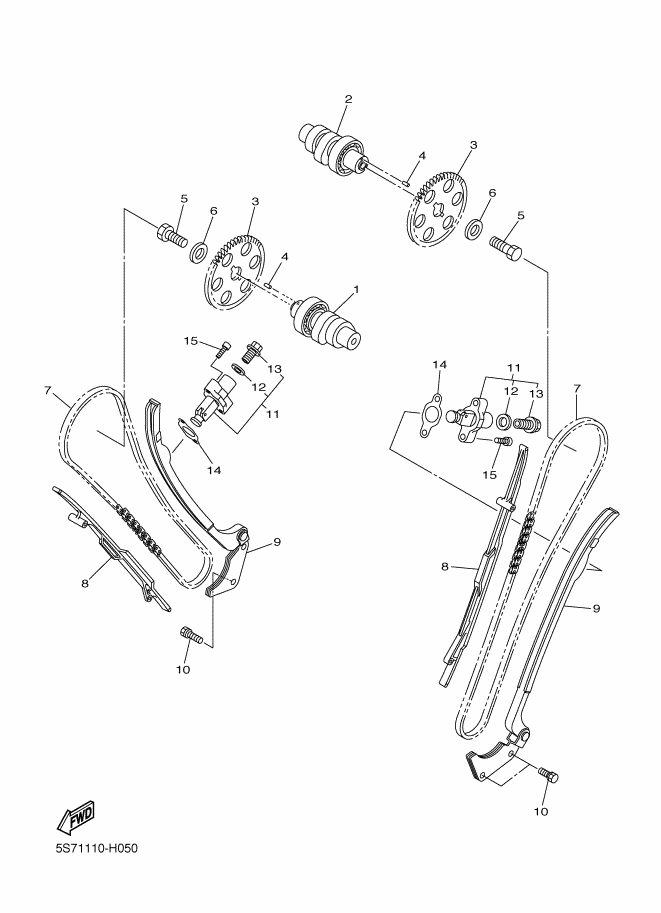

Camshaft & Chain
Explore parts

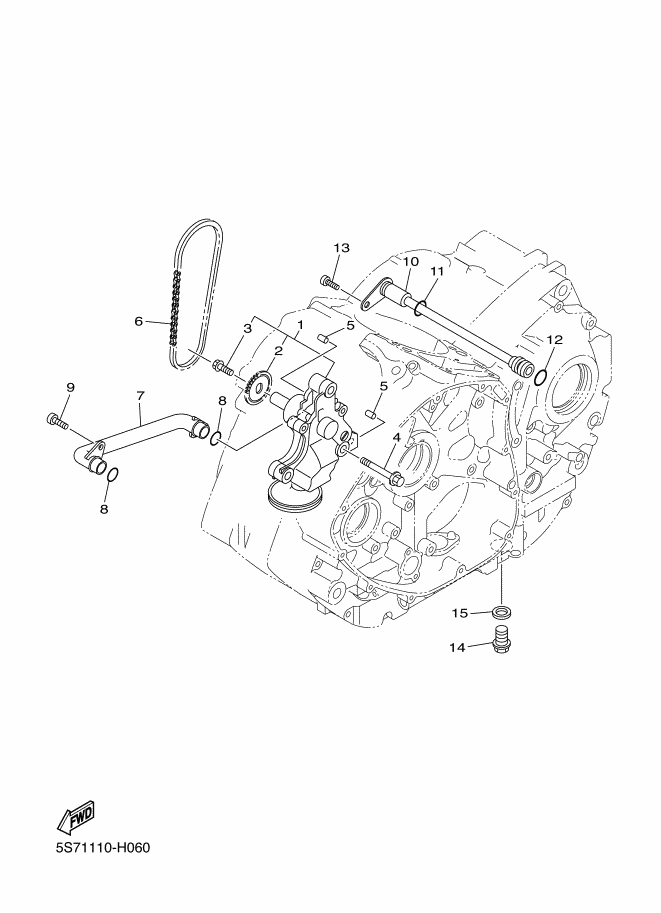

Page 06 · 15 parts
Oil Pump
Explore parts

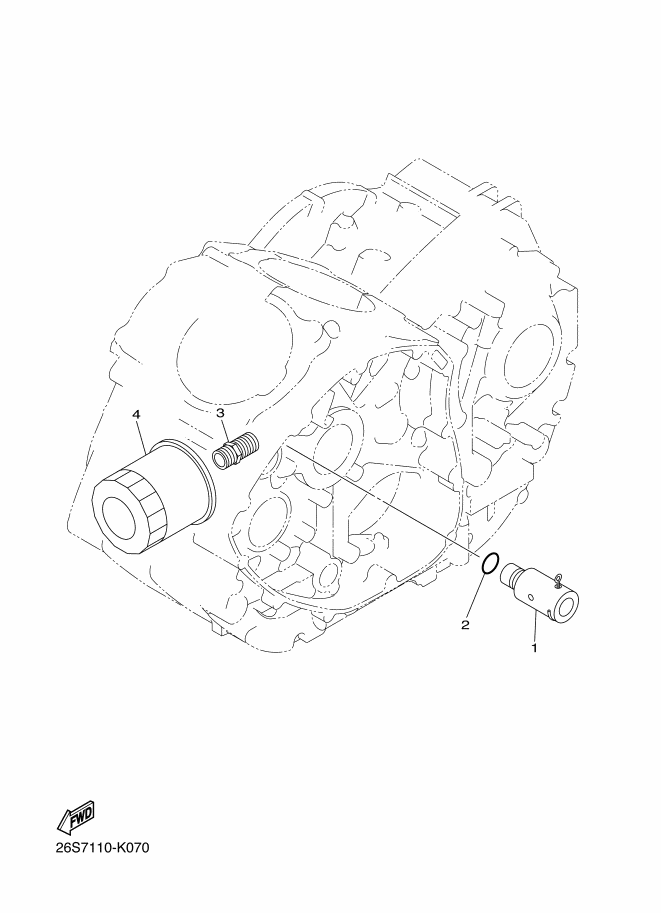

Page 07 · 4 parts
Oil Cleaner
Explore parts
Page 08 · 26 parts

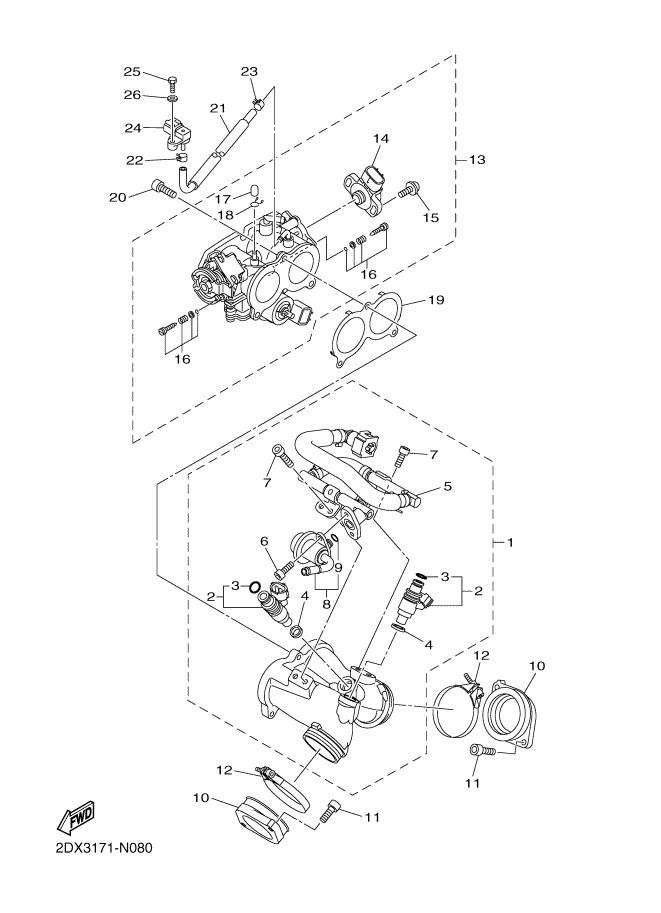

Intake 1
Explore parts

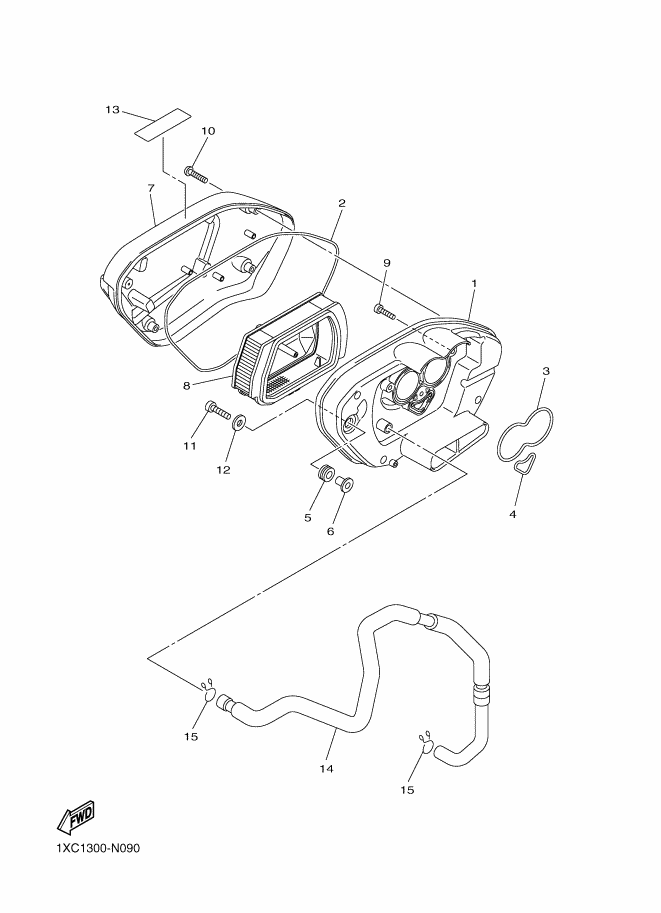

Page 09 · 15 parts
Intake 2
Explore parts
Page 10 · 28 parts

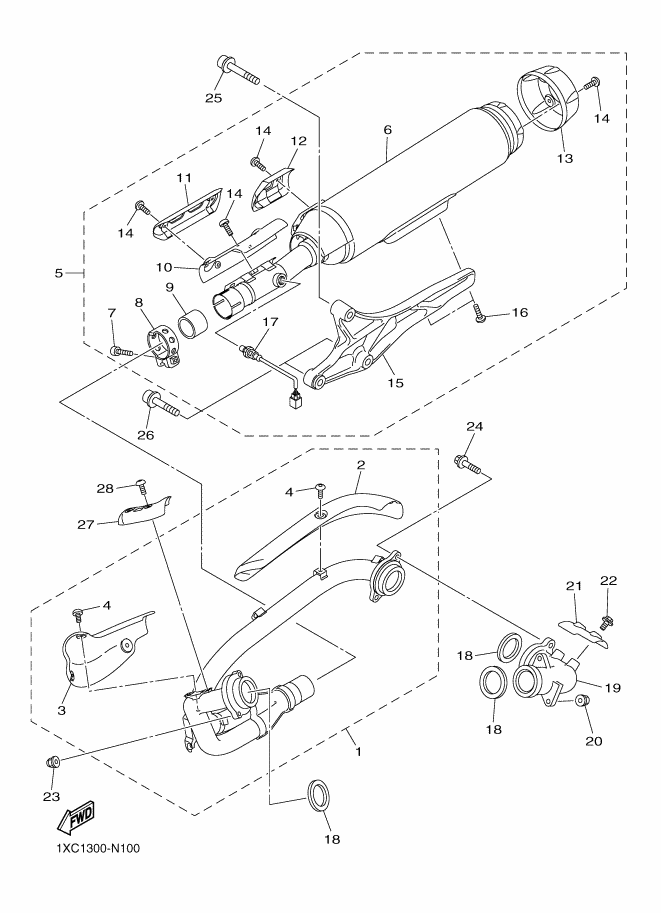

Exhaust
Explore parts
Page 11 · 17 parts

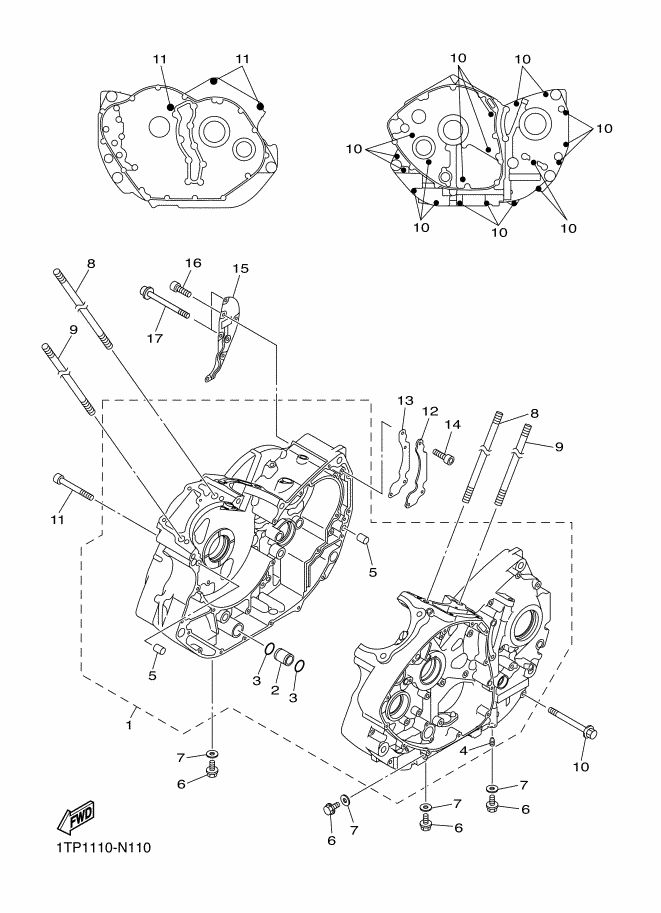

Crankcase
Explore parts
Page 12 · 51 parts

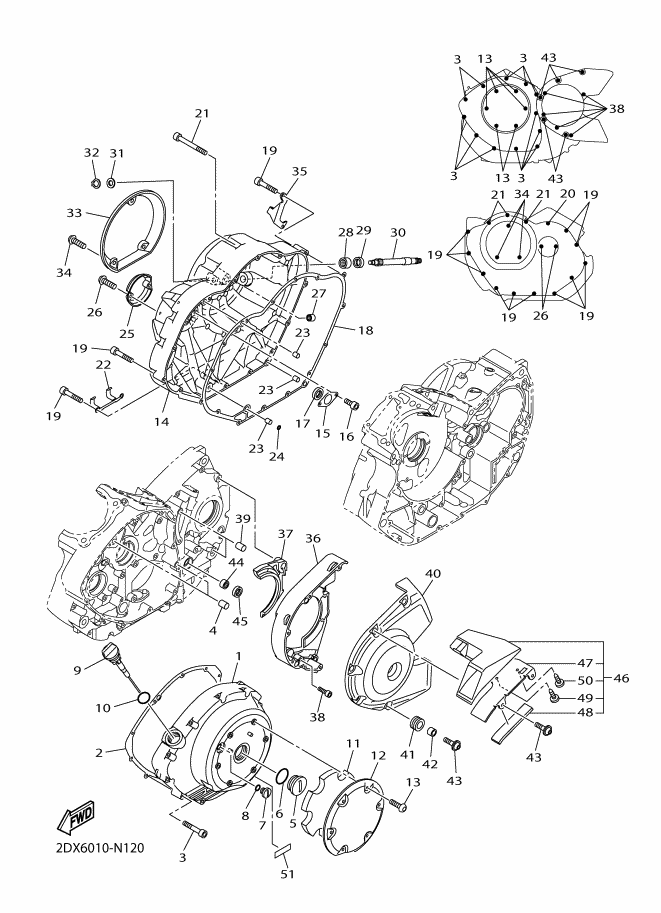

Crankcase Cover 1
Explore parts
Page 13 · 13 parts

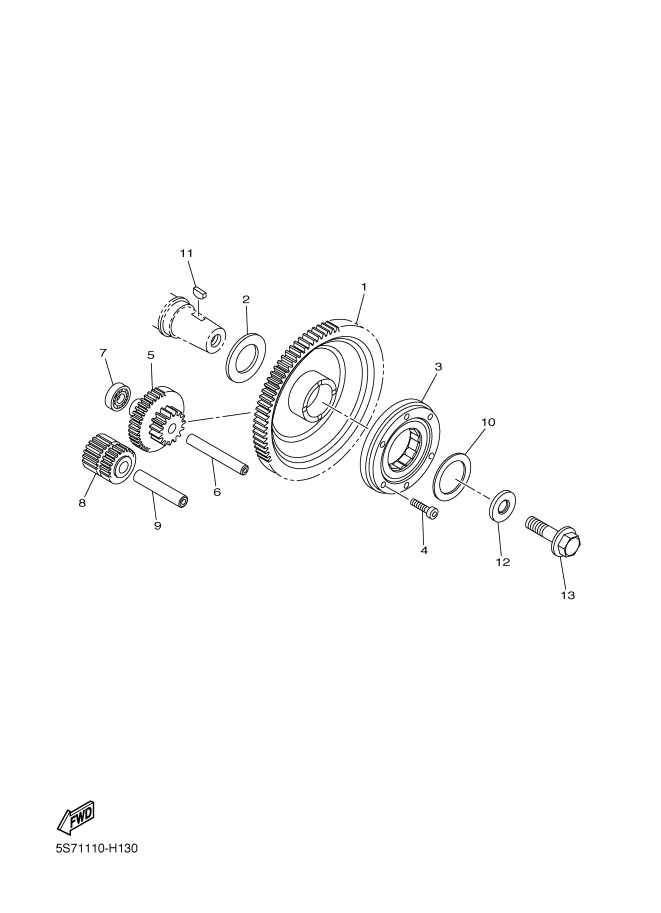

Starter
Explore parts

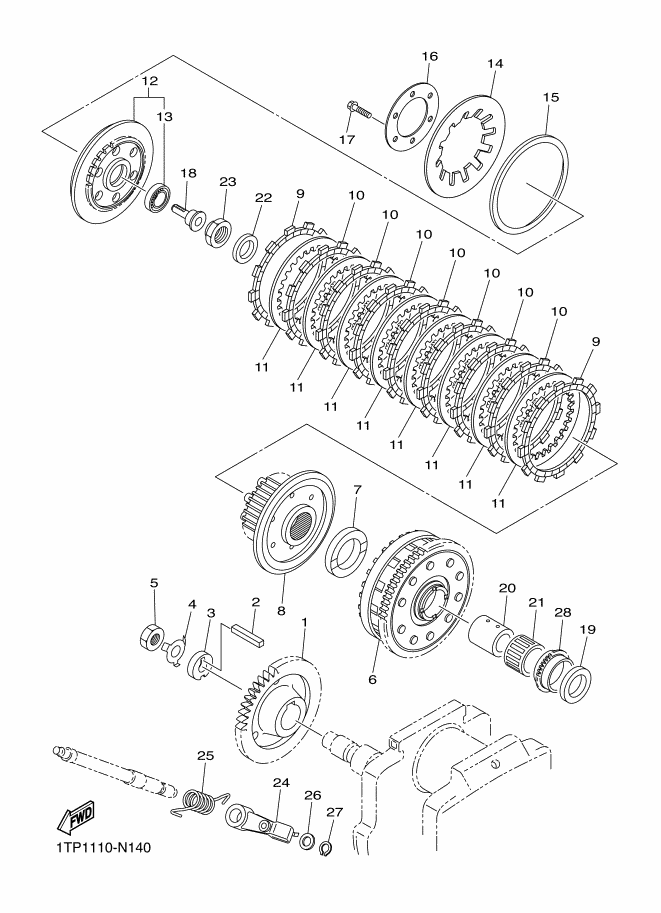

Page 14 · 28 parts
Clutch
Explore parts
Page 15 · 36 parts

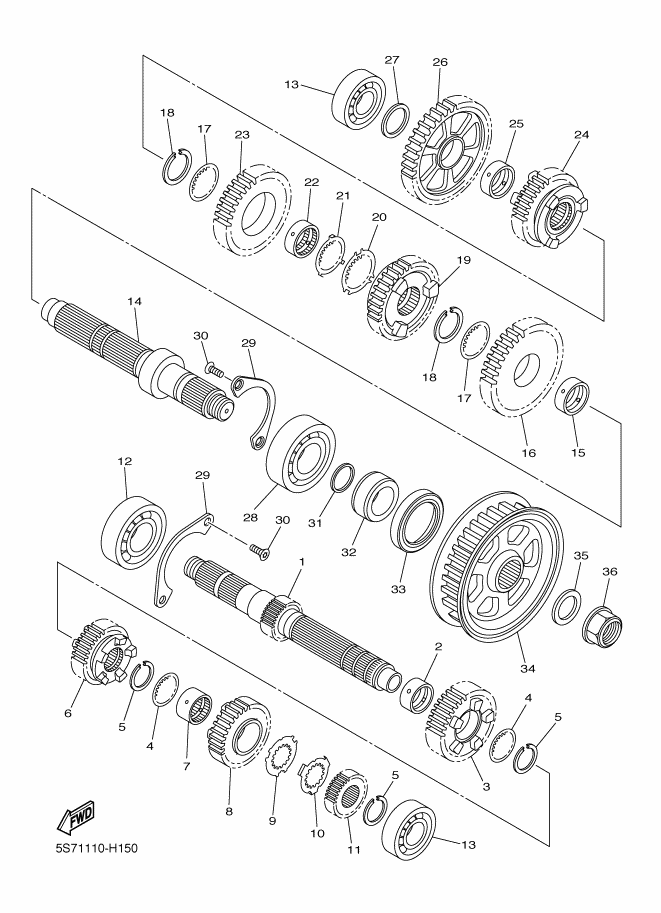

Transmission
Explore parts

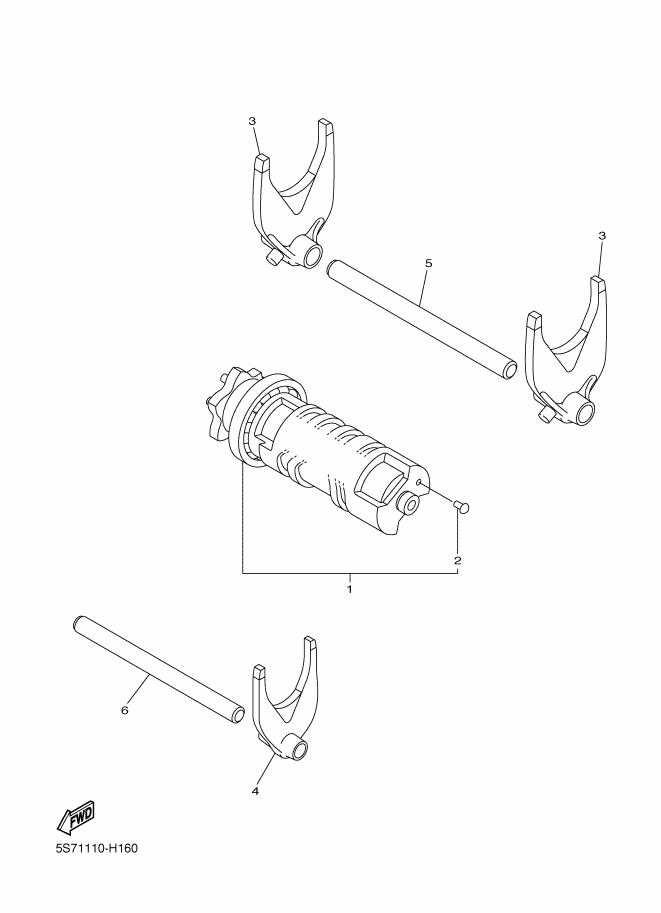

Page 16 · 6 parts
Shift Cam & Fork
Explore parts
Page 17 · 20 parts

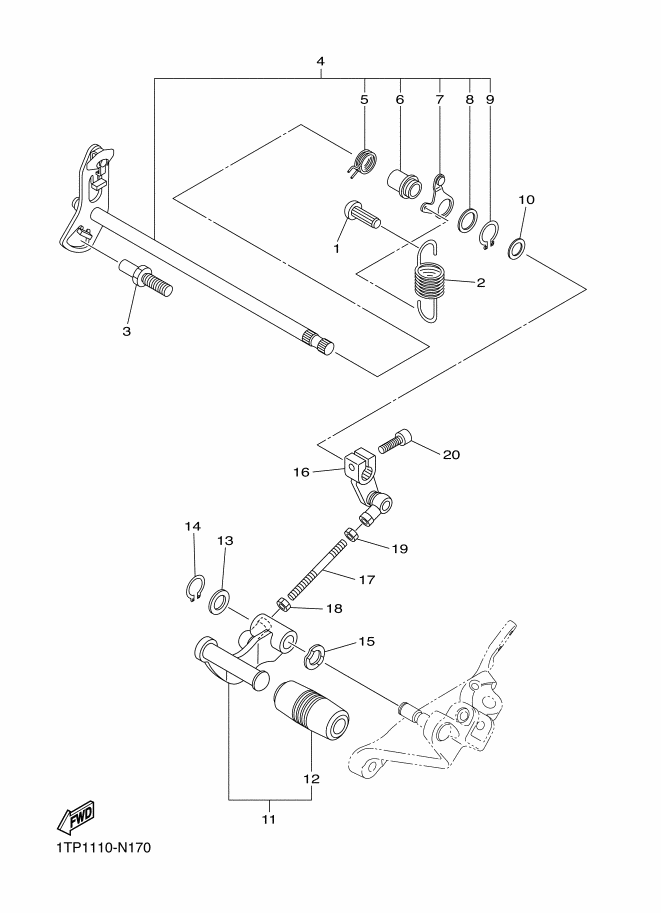

Shift Shaft
Explore parts

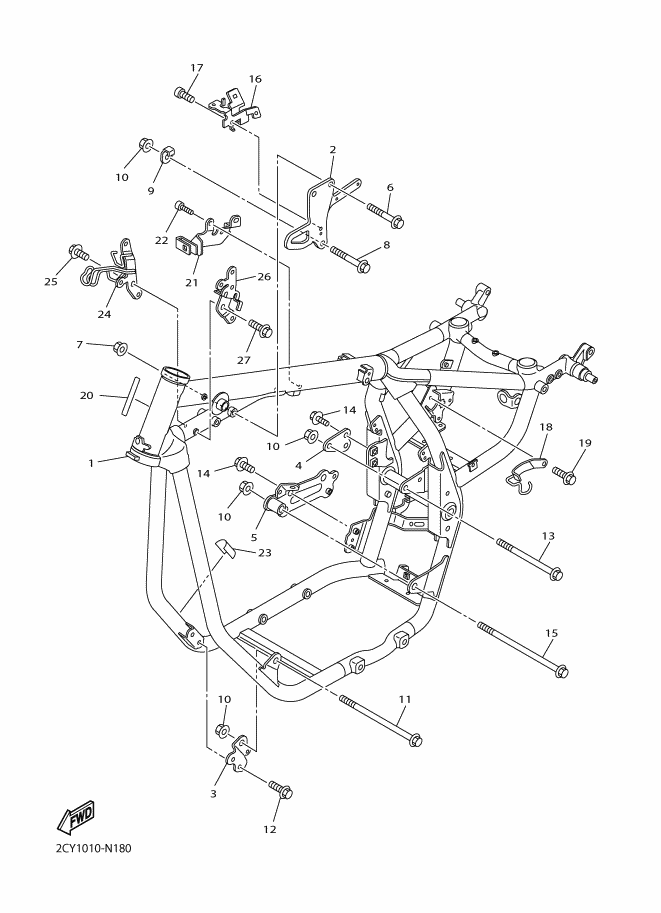

Page 18 · 27 parts
Frame
Explore parts
Page 19 · 26 parts

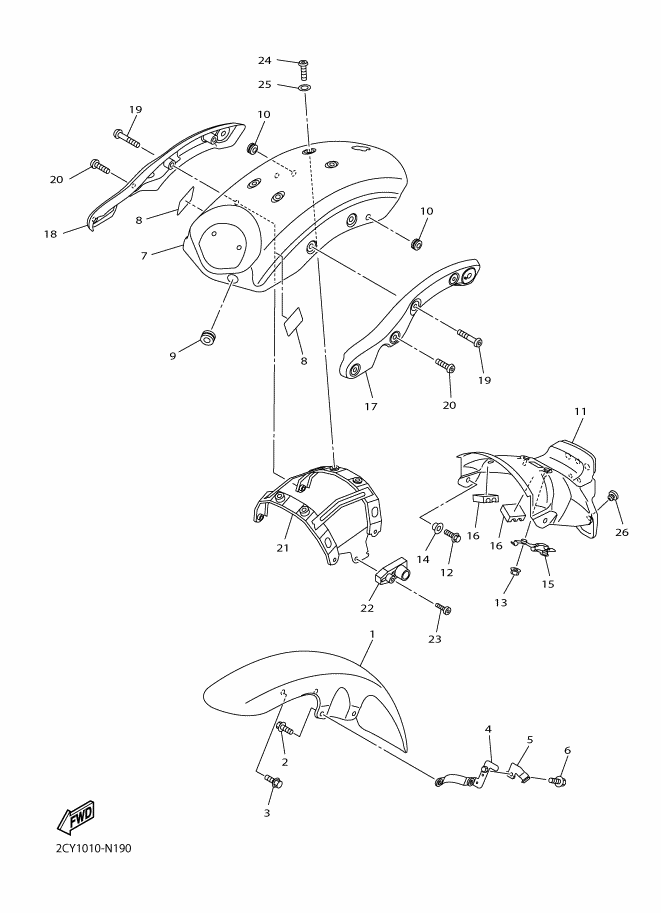

Fender
Explore parts
Page 20 · 41 parts

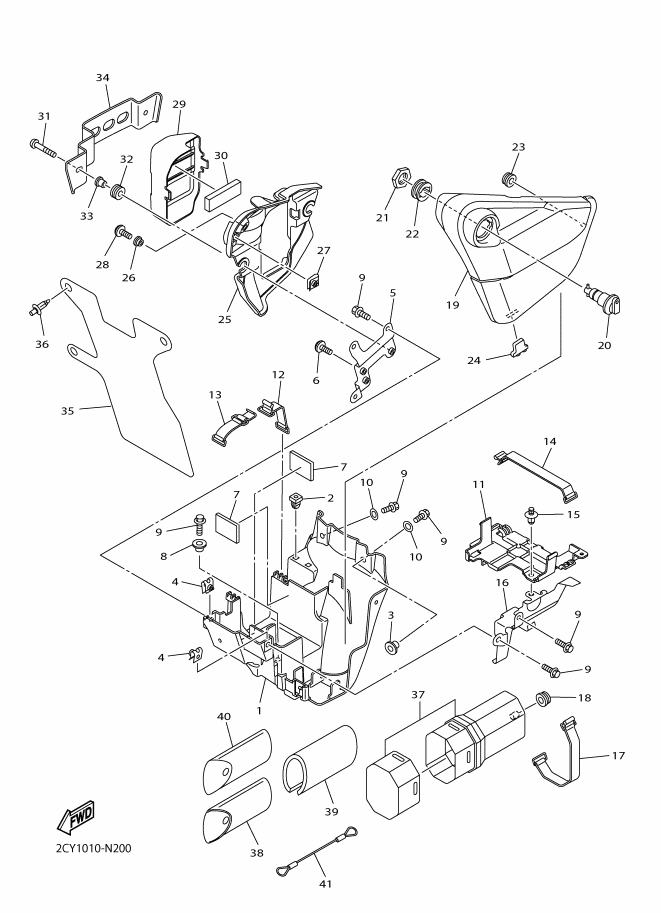

Sidecar Bar
Explore parts
Page 21 · 19 parts

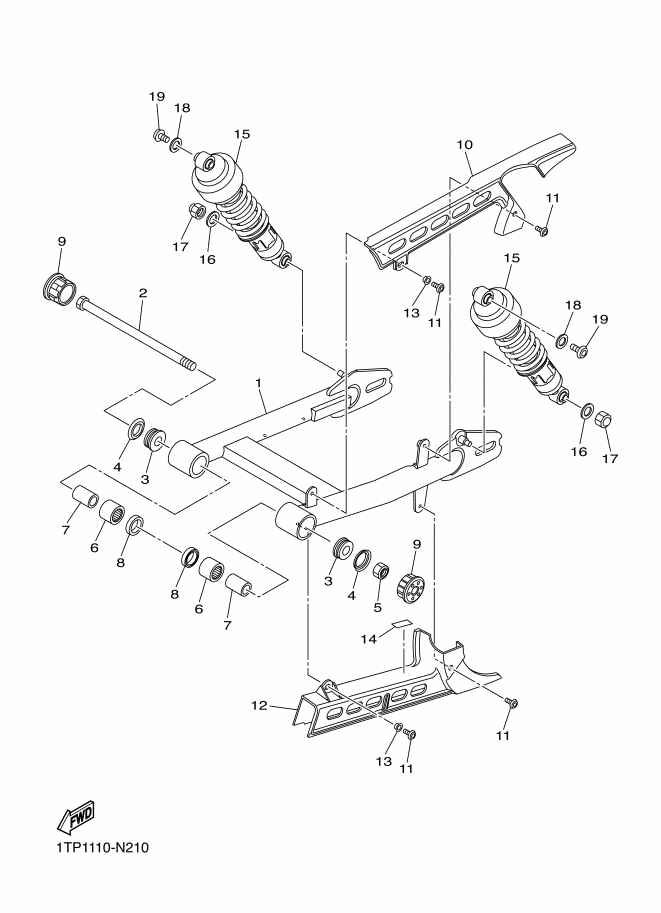

Rear Arm & Suspension
Explore parts
Page 22 · 22 parts

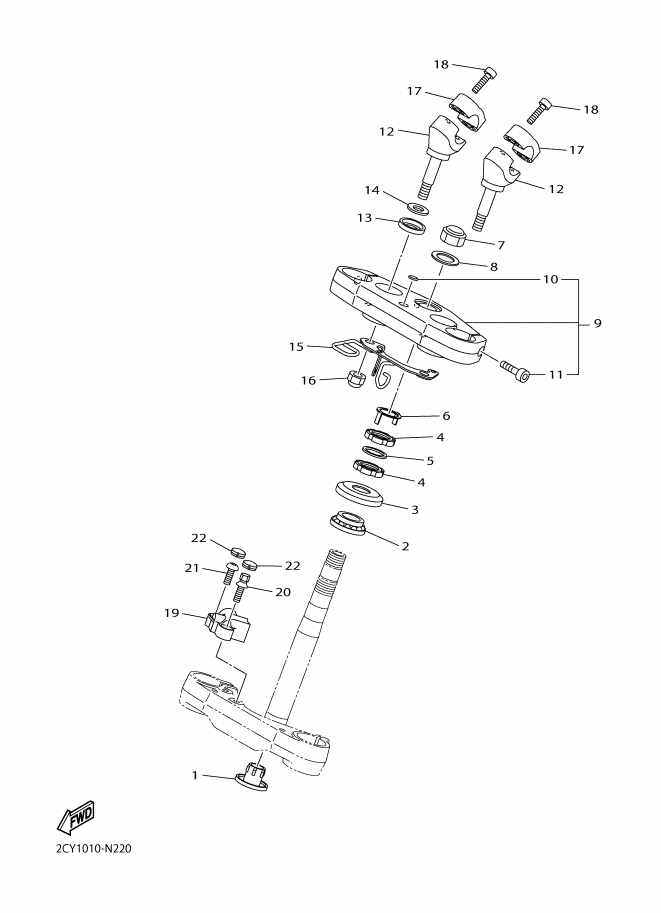

Steering
Explore parts
Page 23 · 42 parts

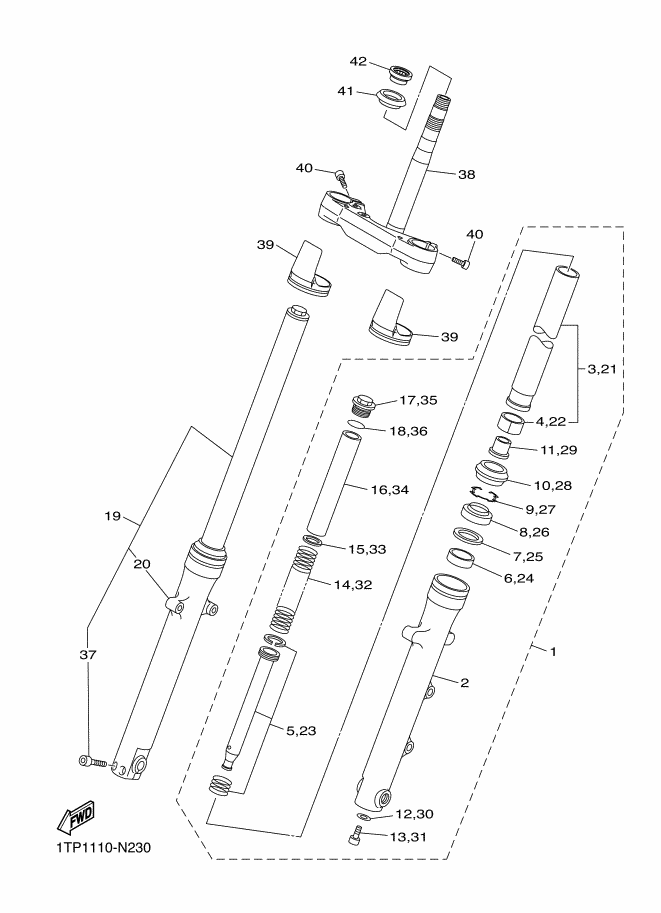

Front Fork
Explore parts
Page 24 · 47 parts

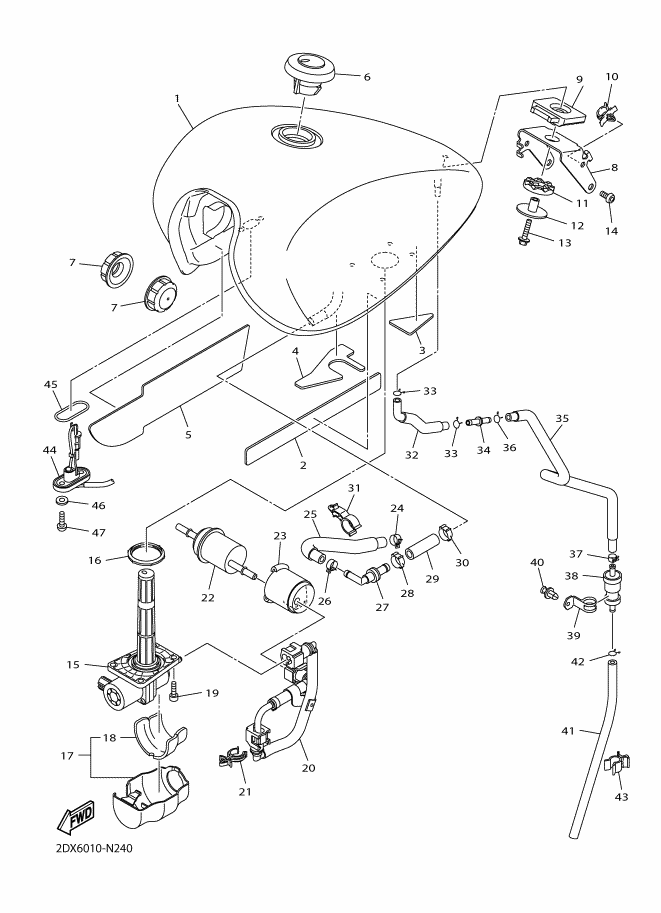

Fuel Tank
Explore parts
Page 25 · 12 parts

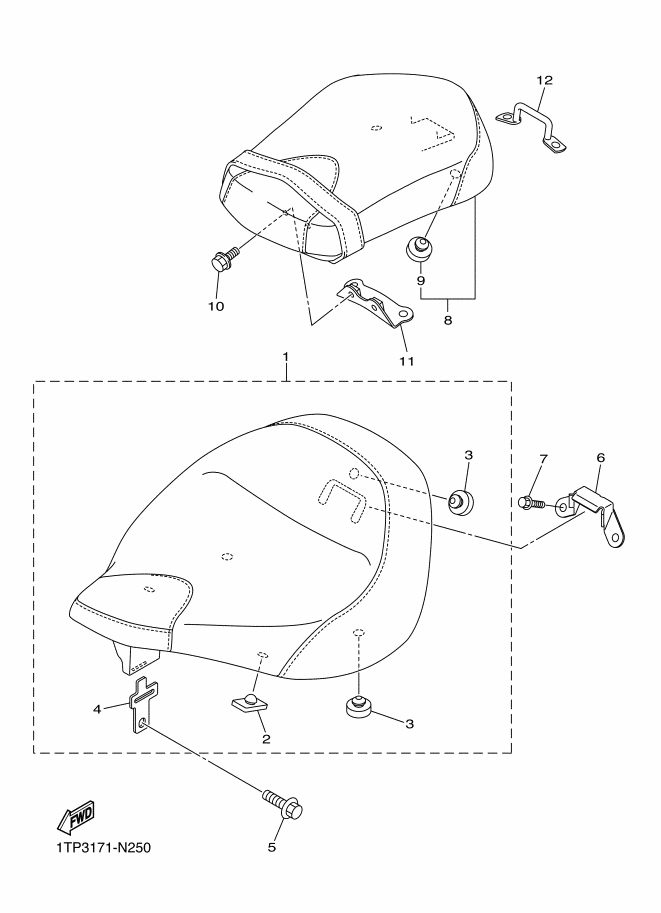

Seat
Explore parts
Page 26 · 11 parts

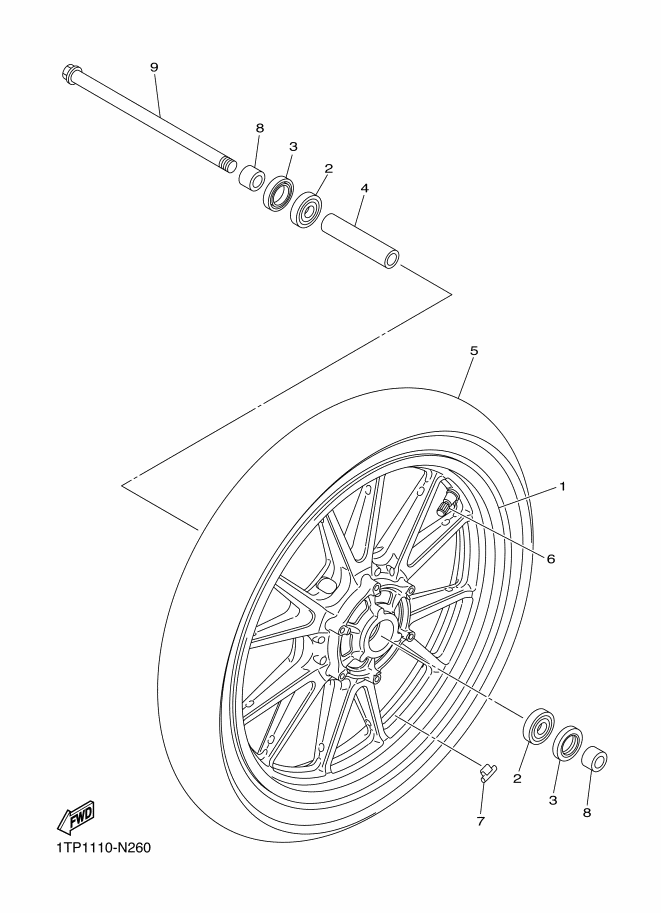

Front Wheel
Explore parts
Page 27 · 14 parts

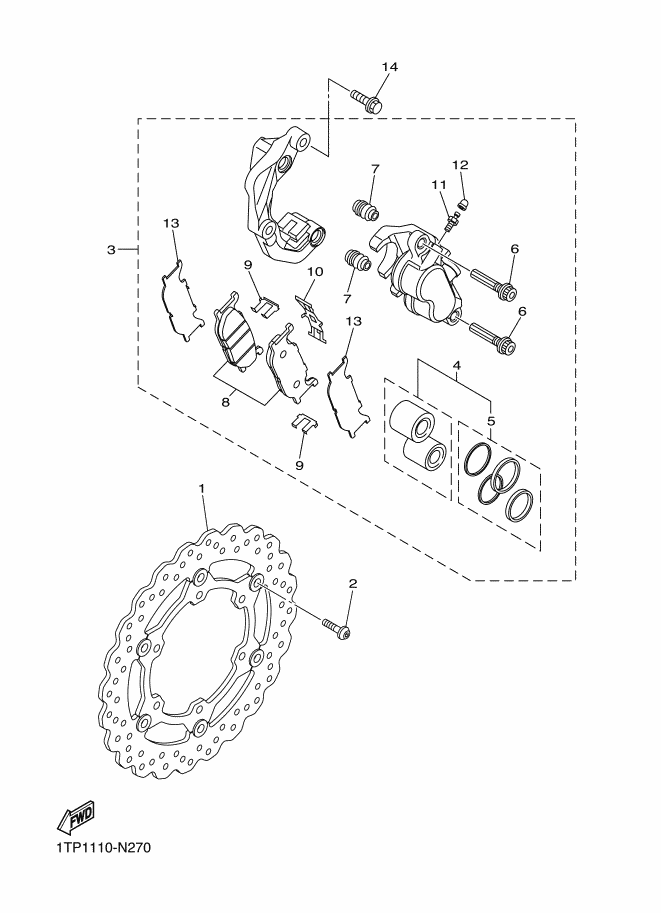

Front Brake Caliper
Explore parts

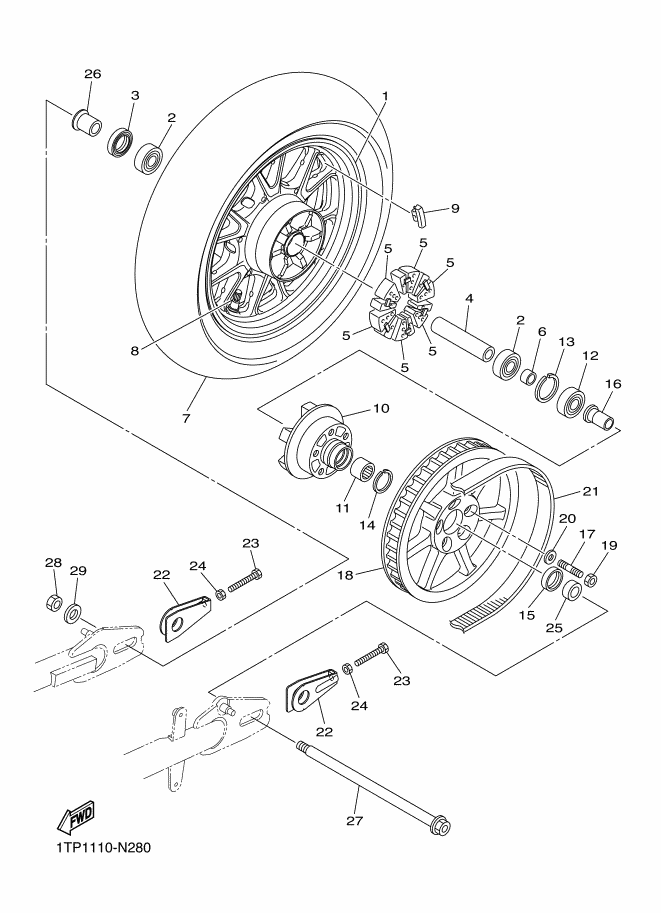

Page 28 · 31 parts
Rear Wheel
Explore parts
Page 29 · 13 parts

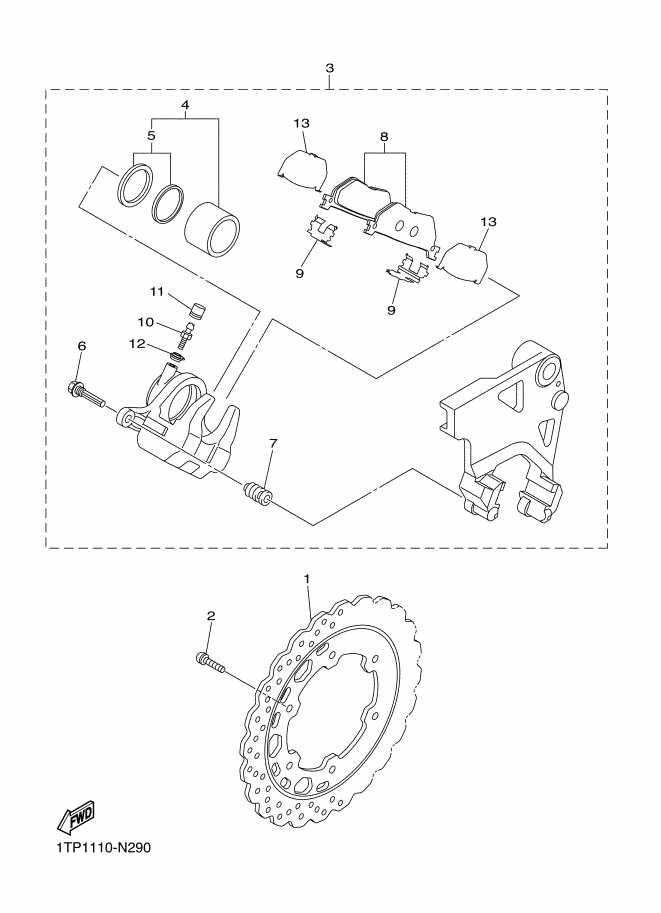

Rear Brake Caliper
Explore parts
Page 30 · 11 parts

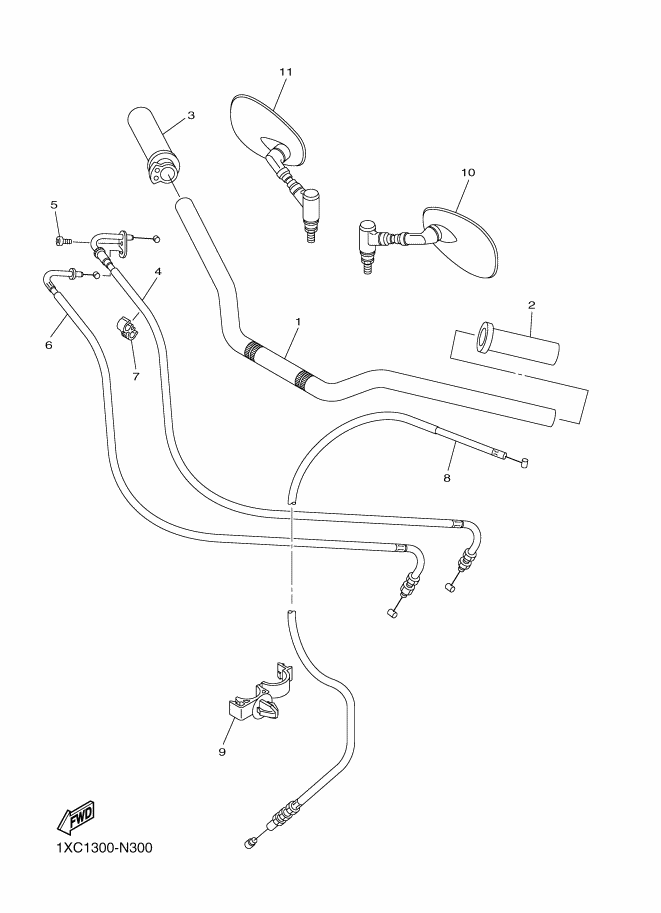

Steering Handle & Cable
Explore parts
Page 31 · 13 parts

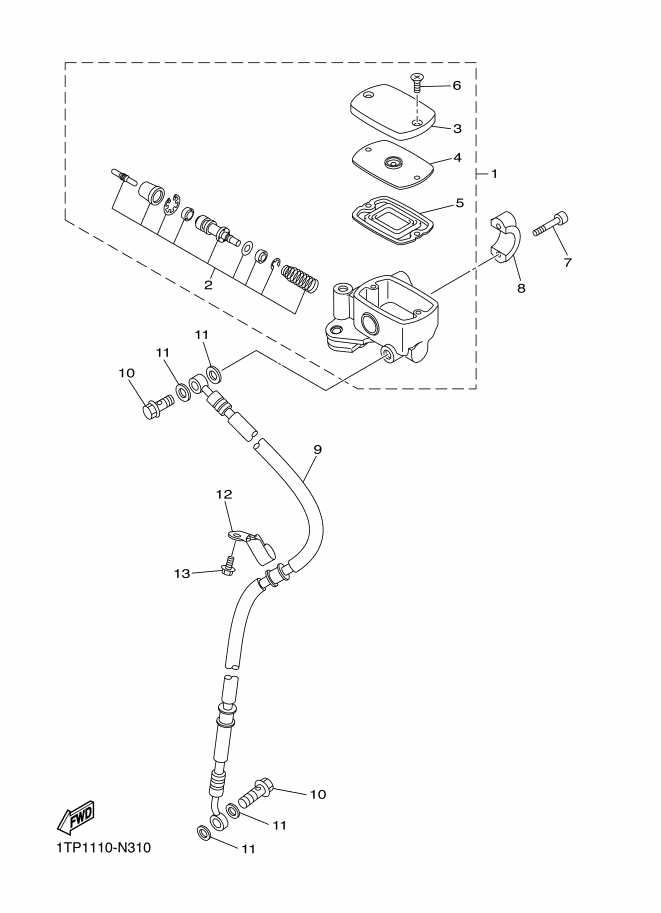

Front Master Cylinder
Explore parts
Page 32 · 42 parts

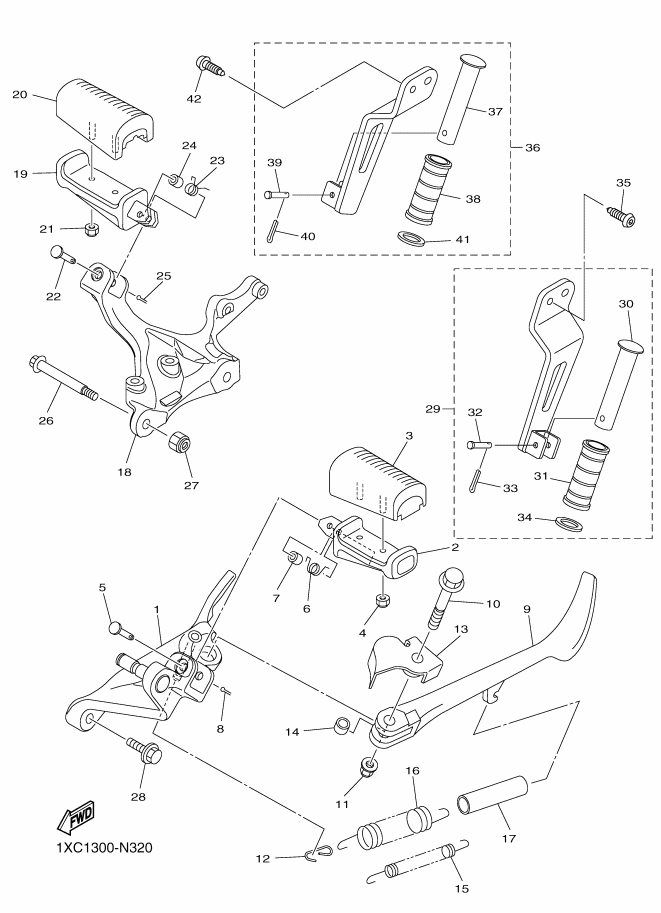

Stand & Footrest
Explore parts

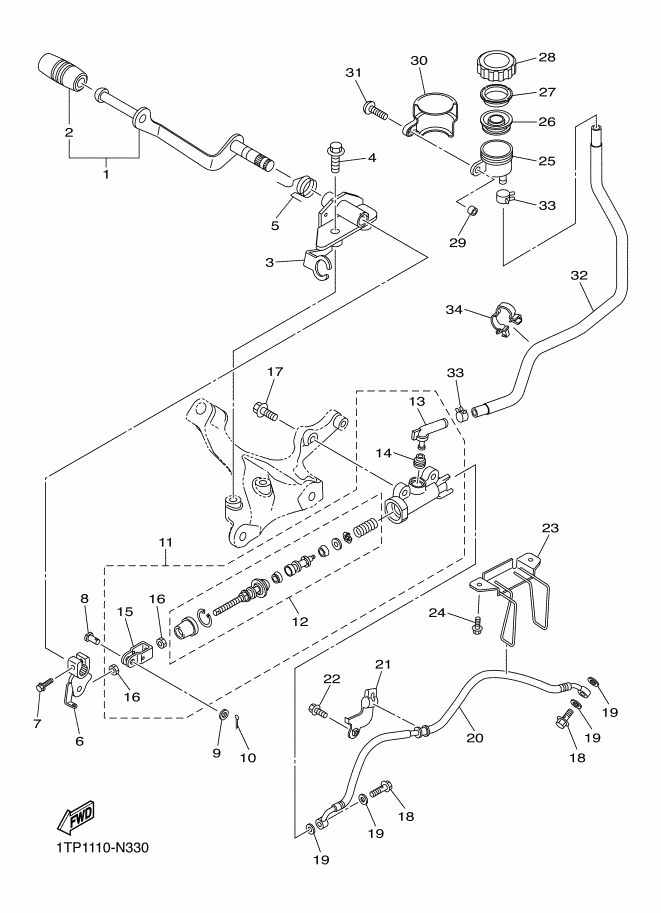

Page 33 · 34 parts
Rear Master Cylinder
Explore parts
Page 34 · 5 parts

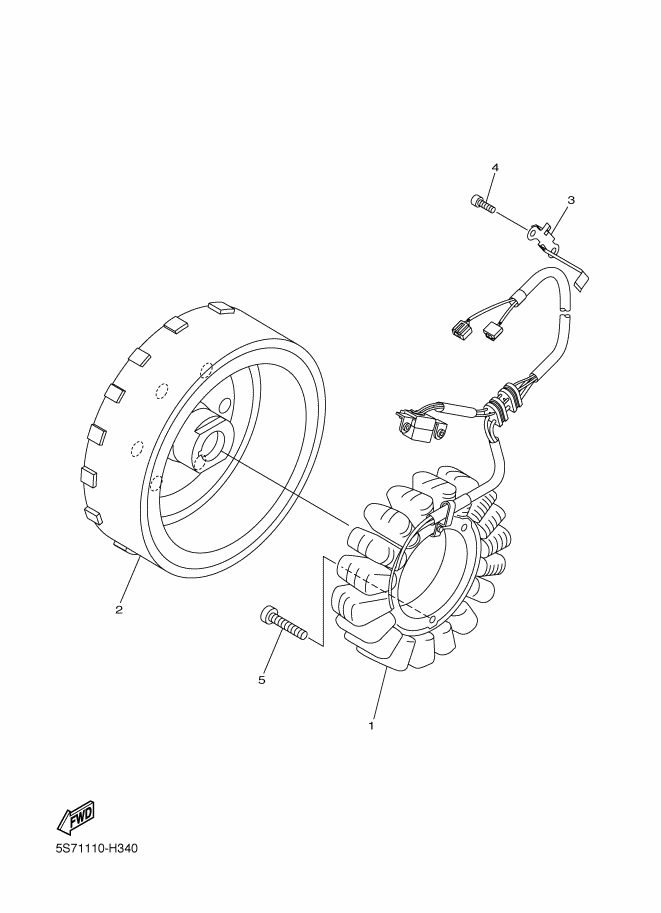

Generator
Explore parts
Page 35 · 12 parts

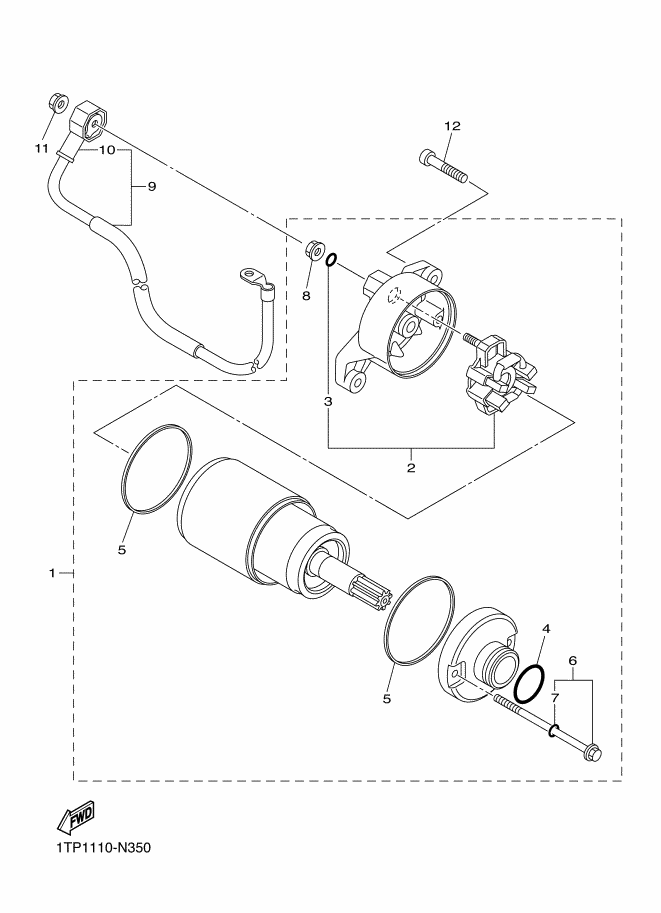

Starting Motor
Explore parts

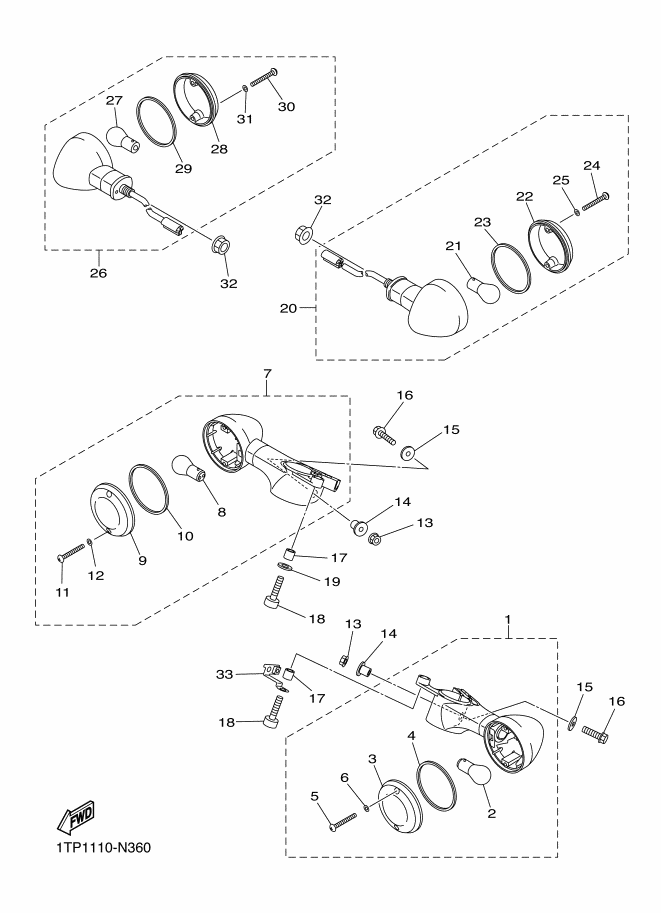

Page 36 · 33 parts
Flashlight
Explore parts

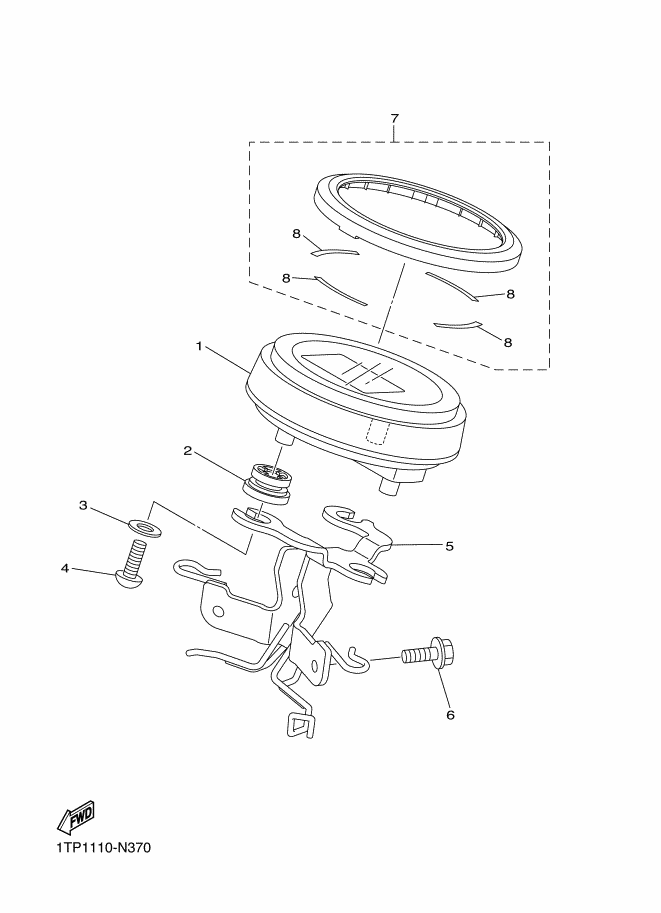

Page 37 · 8 parts
Meter
Explore parts
Page 38 · 26 parts

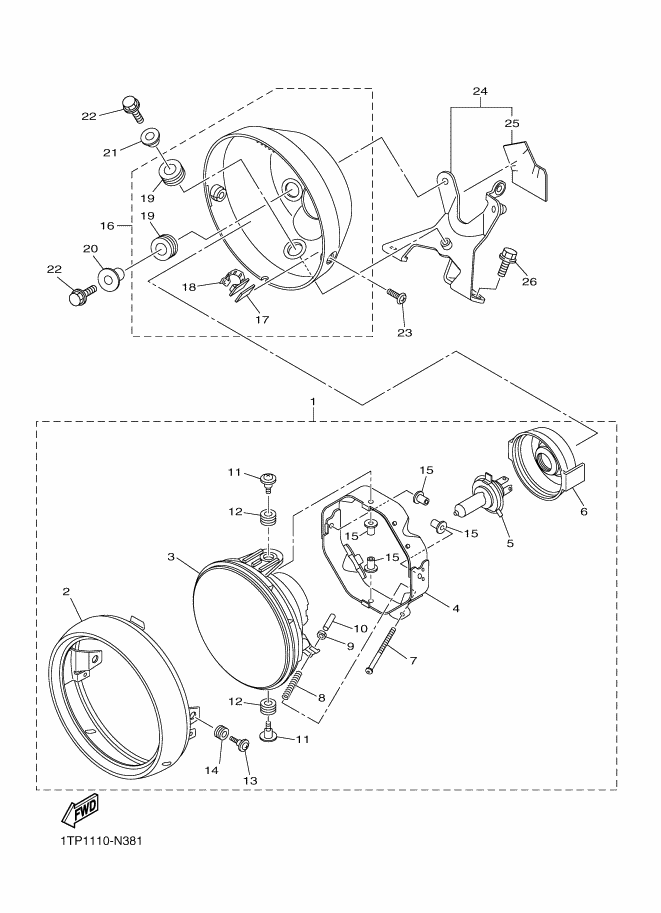

Headlight
Explore parts

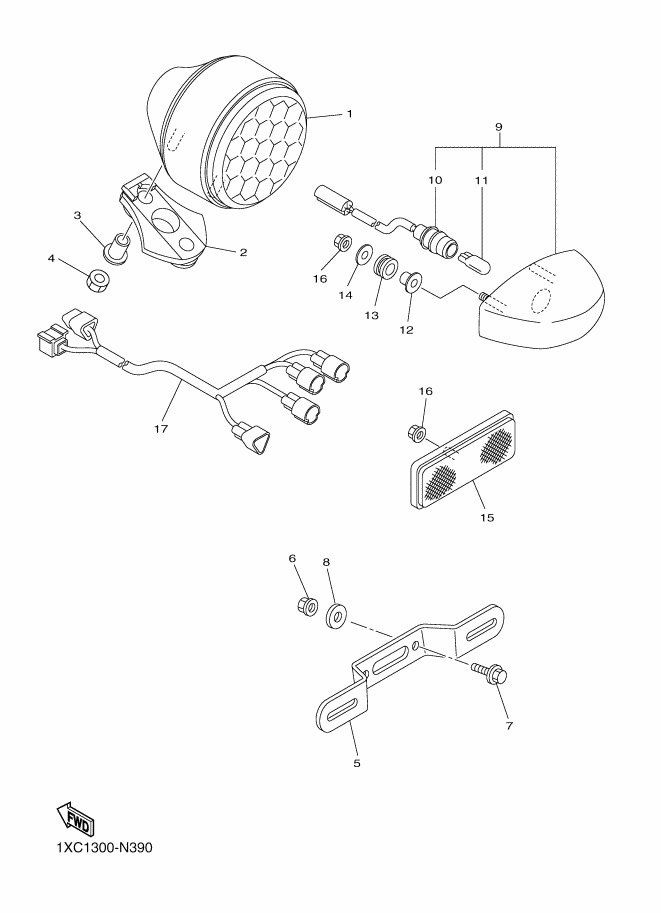

Page 39 · 17 parts
Taillight
Explore parts

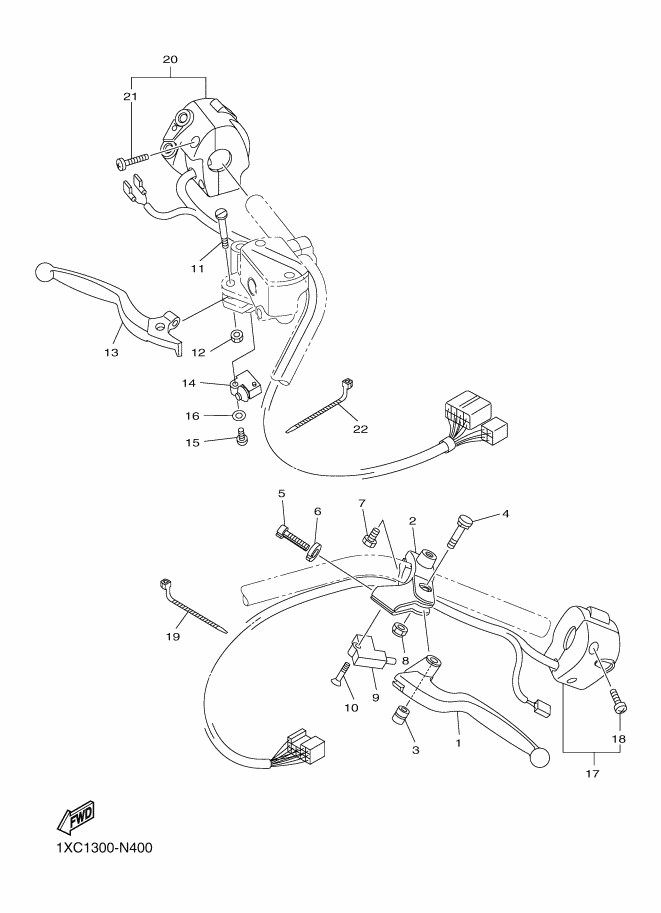

Page 40 · 22 parts
Handle Switch & Lever
Explore parts
Page 41 · 36 parts

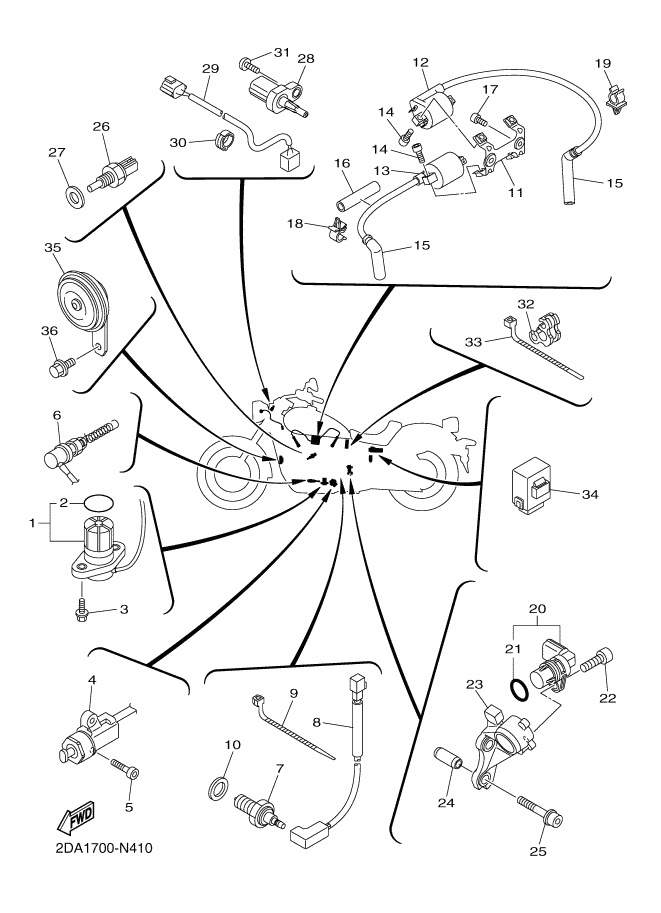

Electrical 1
Explore parts
Page 42 · 36 parts

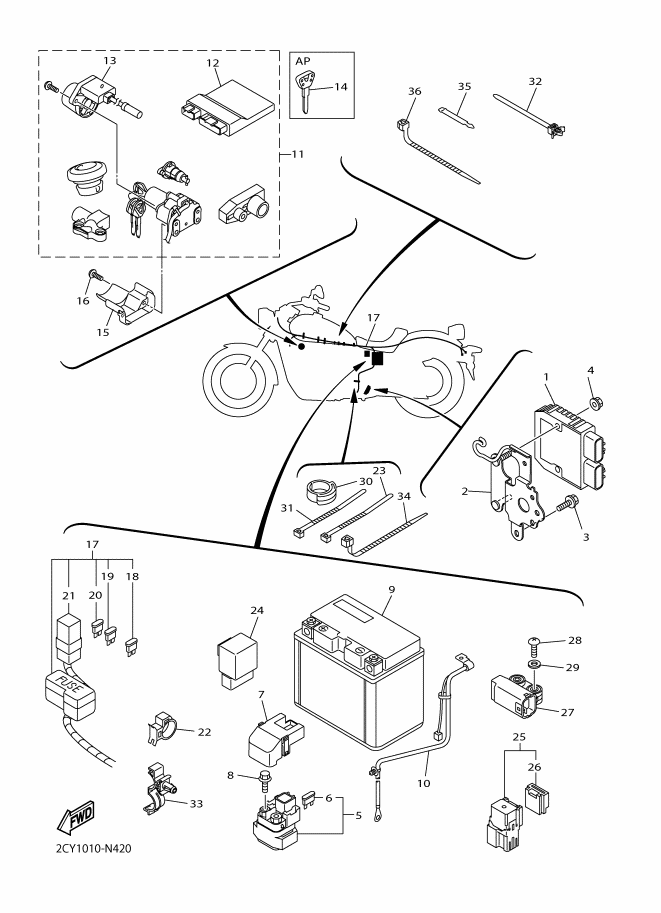

Electrical 2
Explore parts

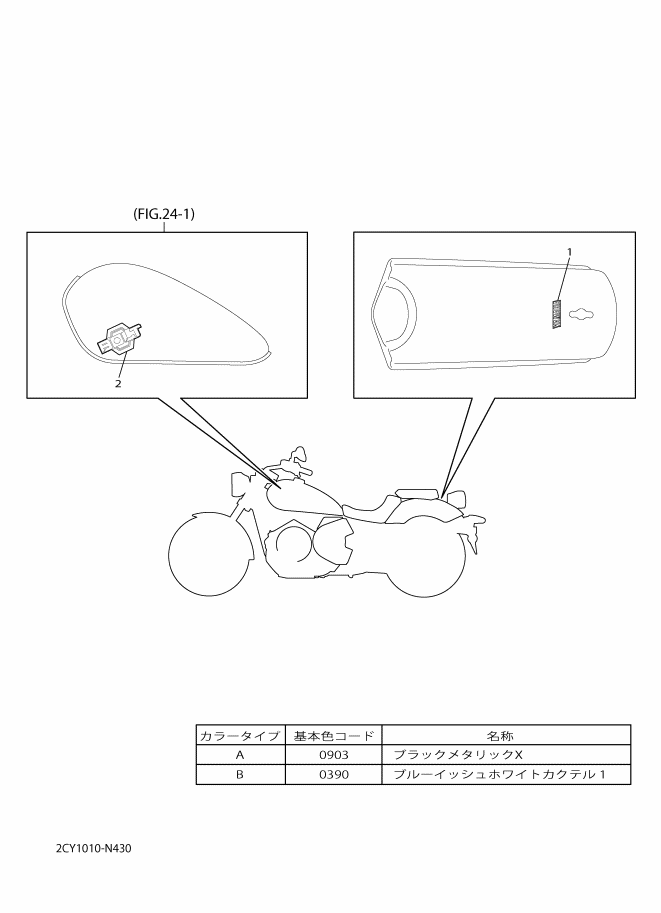

Page 43 · 2 parts
